Resonant Coupling Networks

Prepared by Dr. Aaron Scher
[email protected]
Oregon Institute of Technology

Back to Aaron's home page.

References

1. [1] K. Clarke, et. al., Communication Circuits: Analysis and Design, 1971
2. [2] H. Krauss, et. al., "Solid State Radio Engineering", 1980
3. [3] J. Carr, "Secrets of RF Circuit Design", 1991

Resonant coupling networks potpourri

Below are a bunch of images and figures of circuit transforms, examples, and theorems regarding resonant coupling networks, with a focus on magnetic coupling.

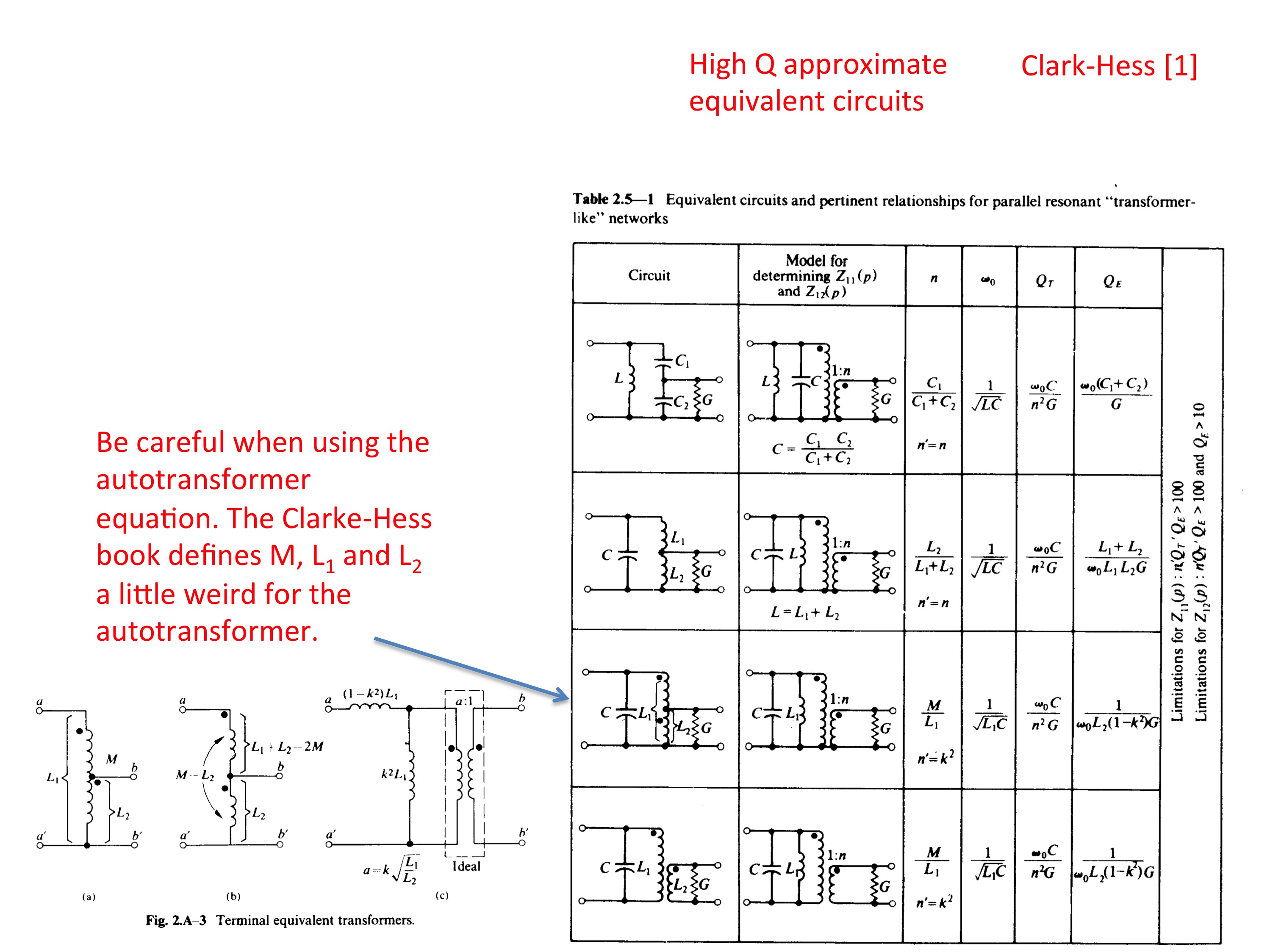

Figure 1. High Q approximate equivalent circuits for various parallel, resonant "transformerlike" networks.

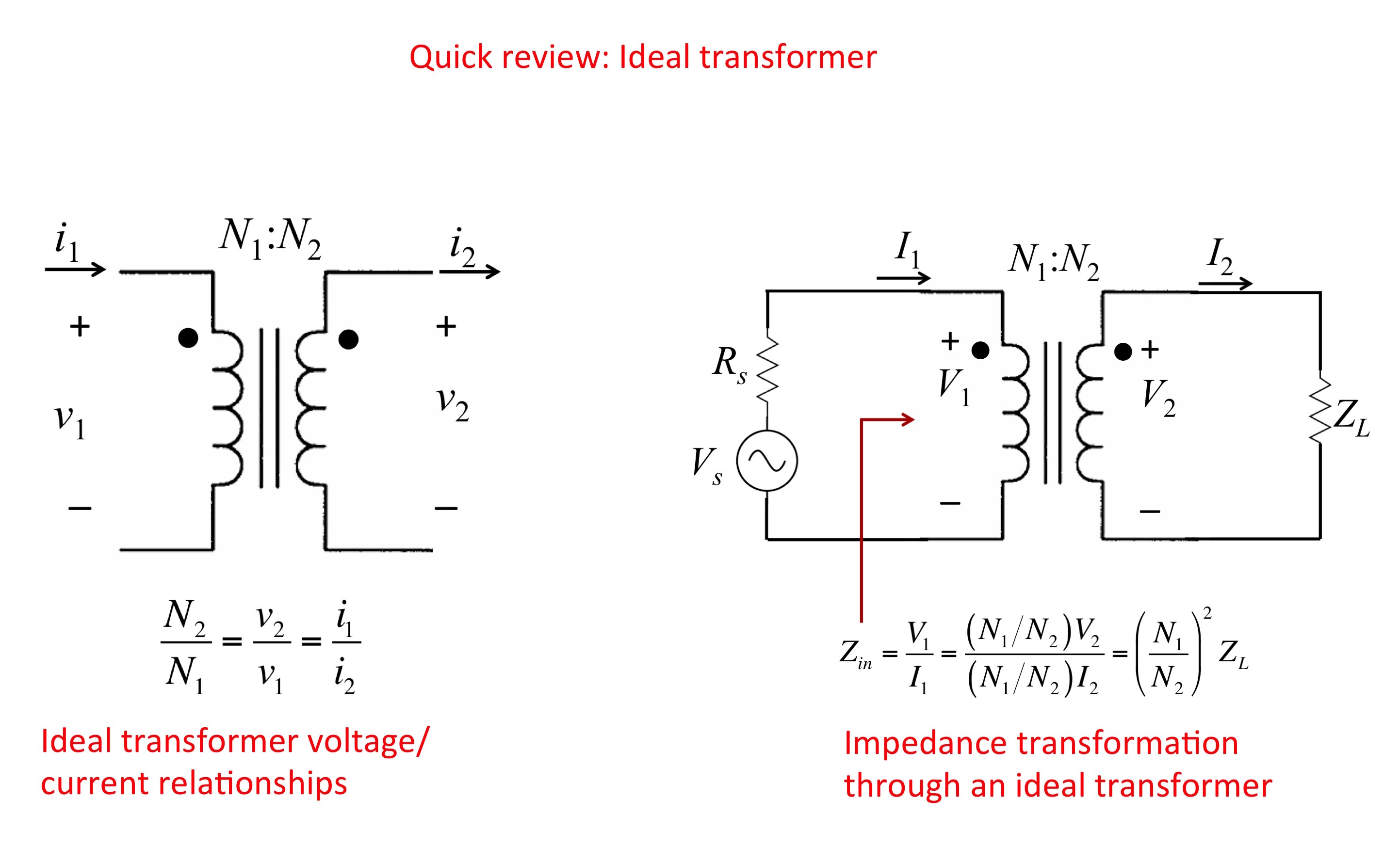

Figure 2.Ideal transformer circuit relationships

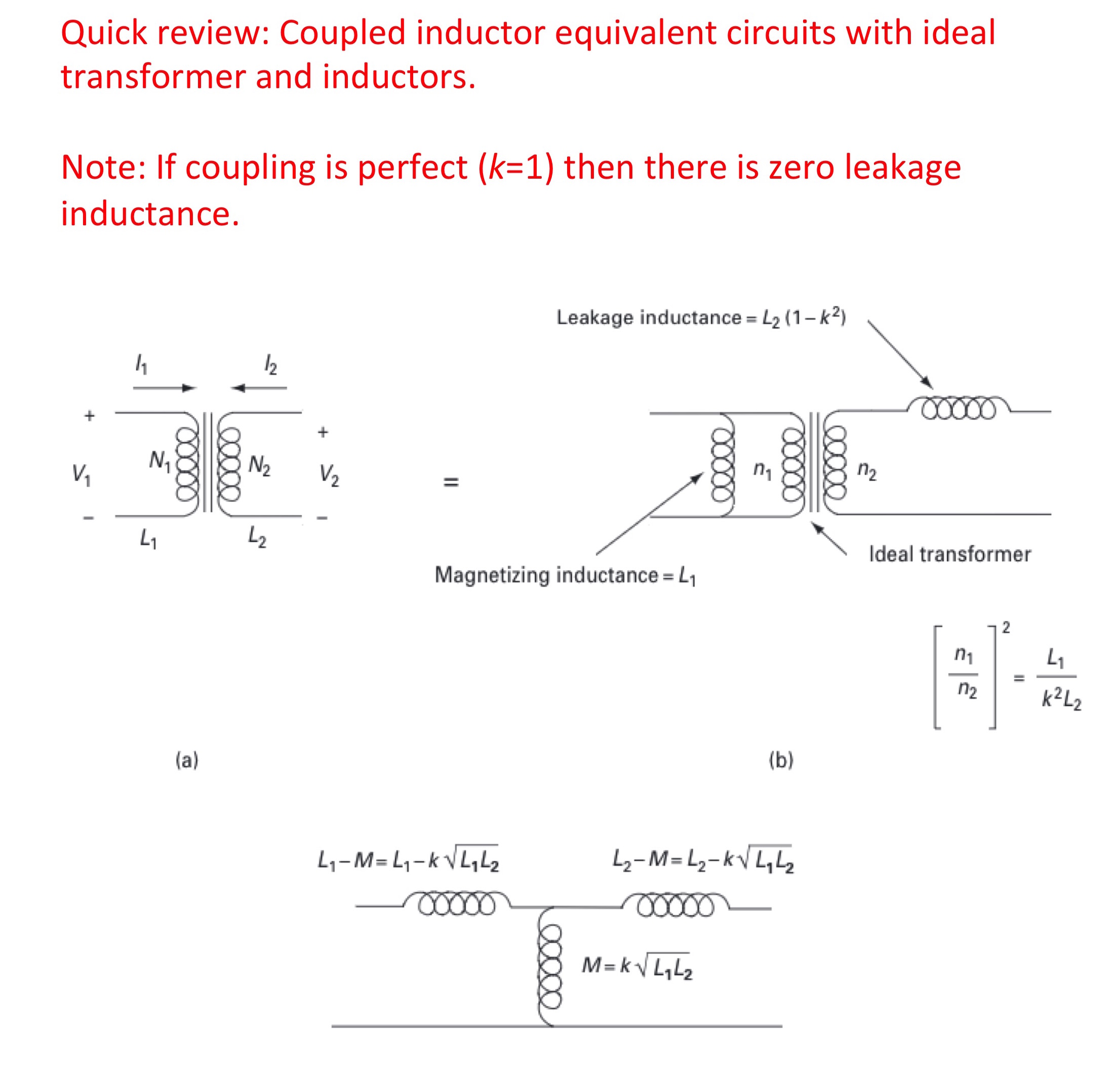

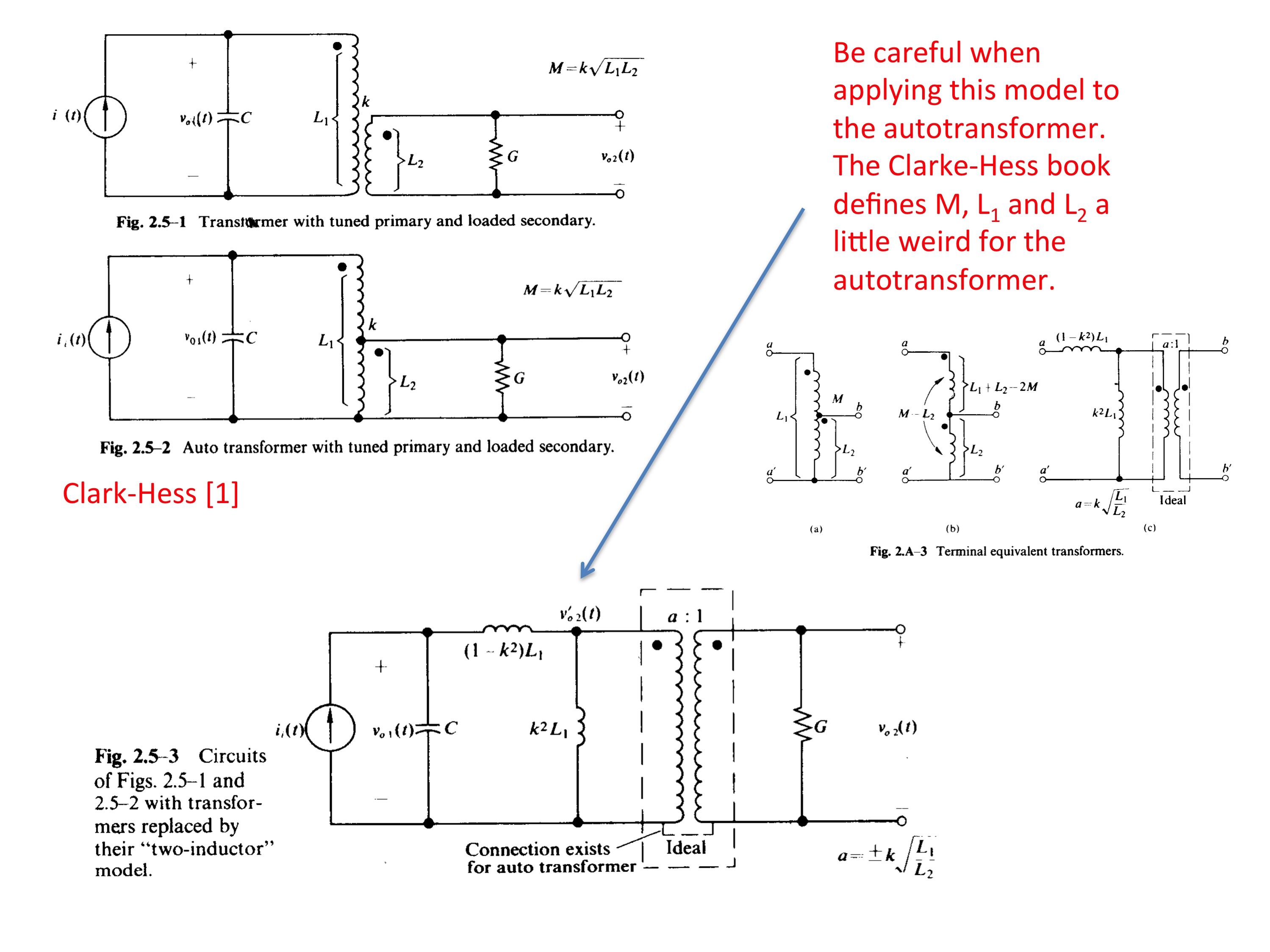

Figure 3. Coupled inductor equivalent circuits in terms of magnetizing and leakage inductances

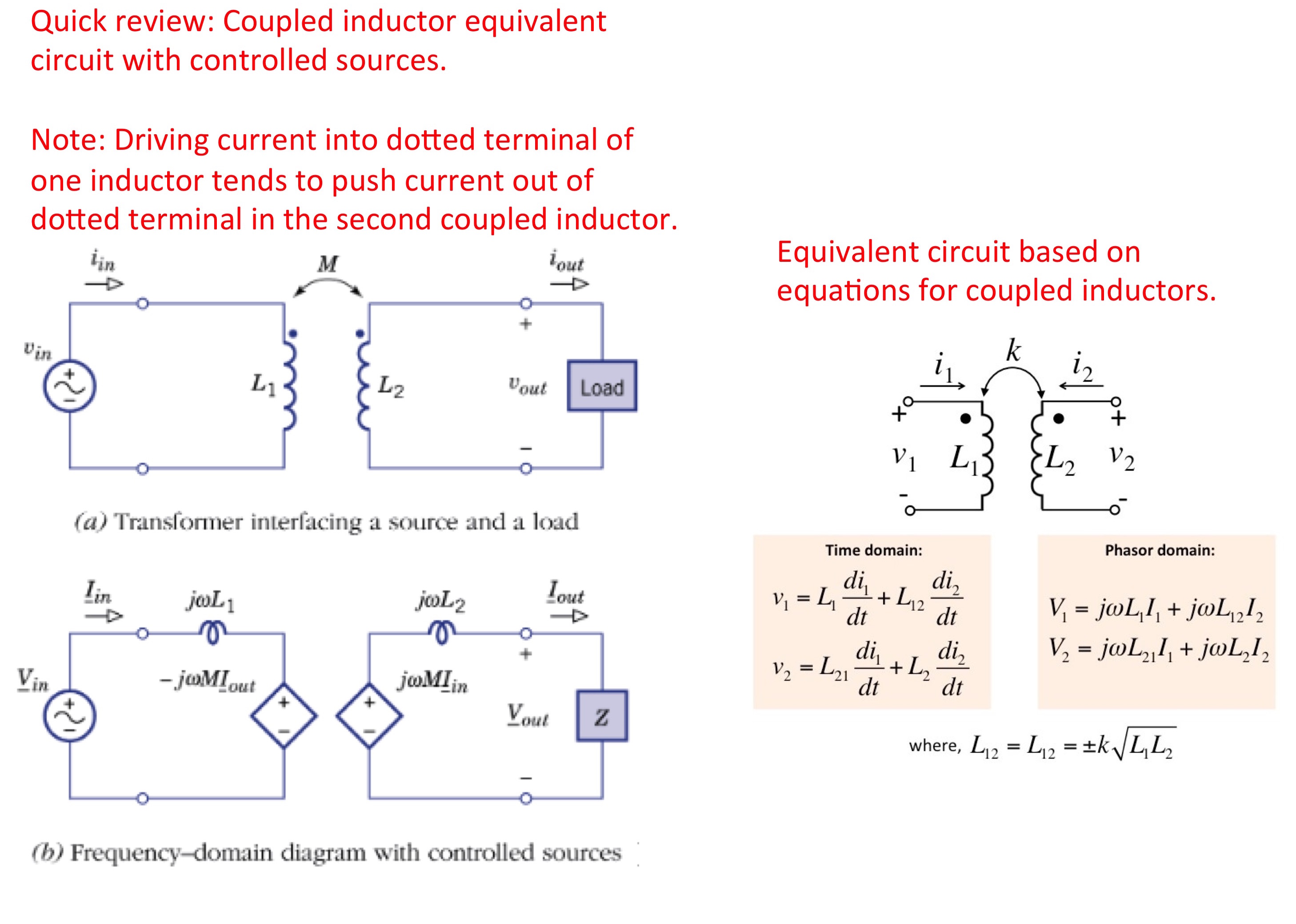

Figure 4. Another coupled inductor equivalent circuit in terms of controlled sources

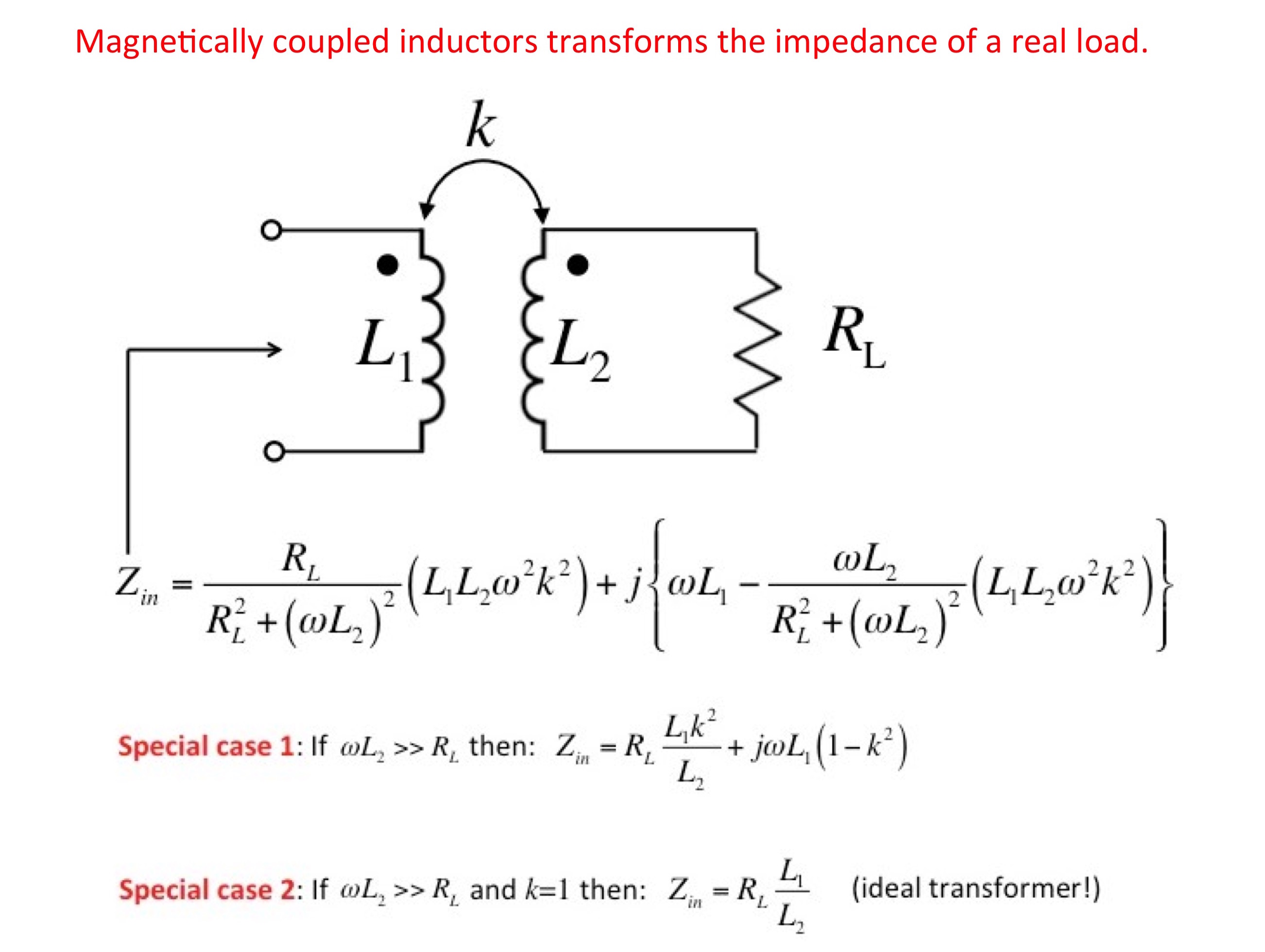

Figure 5. Coupled inductor impedance transformation
Figure 6. Coupled inductor equivalent circuits for transformer and autotransfer in terms of magnetizing and leakage inductances

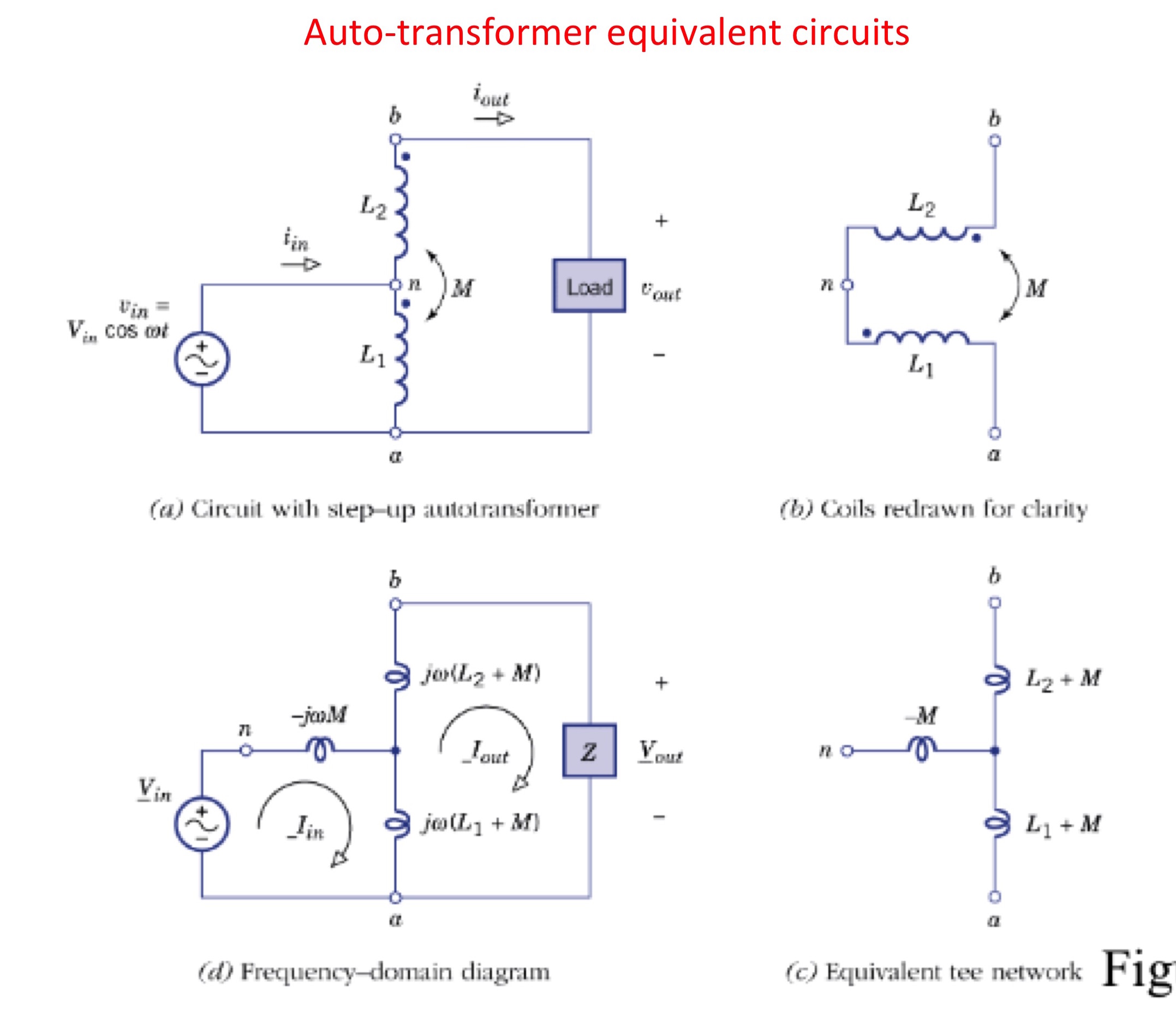

Figure 7. Auto-transformer equivalent circuits

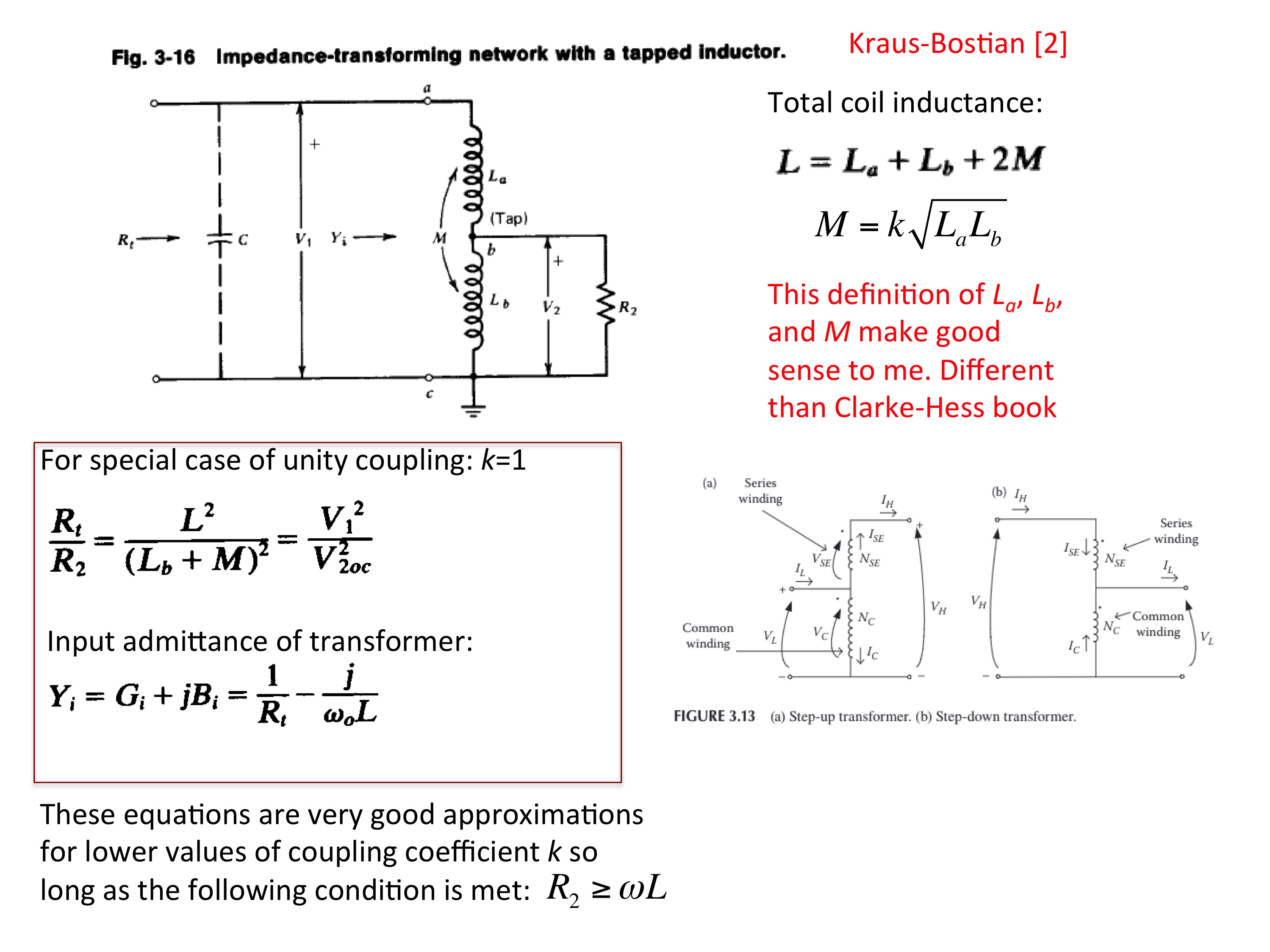

Figure 8. Tapped inductor (auto-transformer) impedance

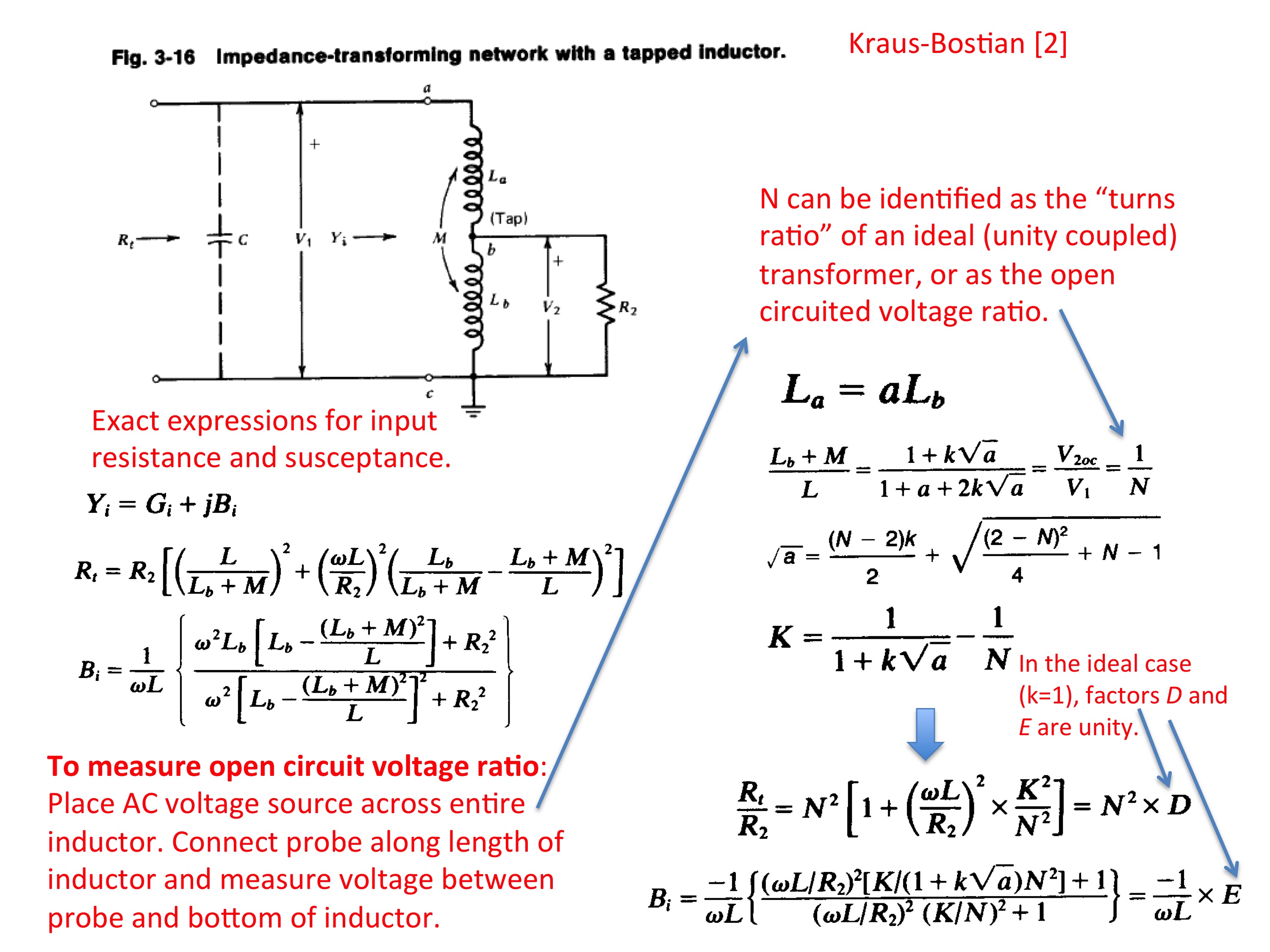

Figure 9. Non-ideal tapped inductor (auto-transformer) equivalent input impedance

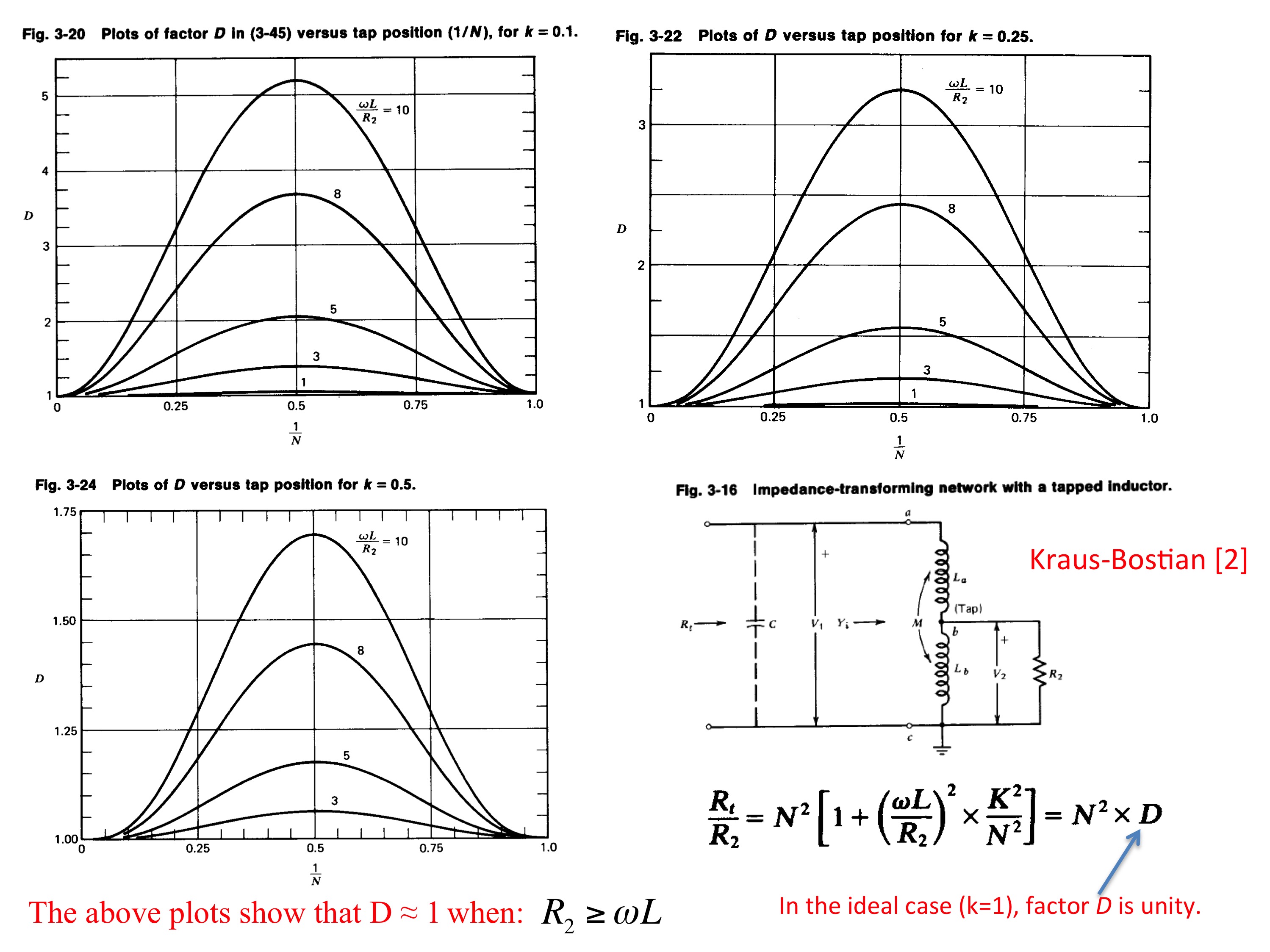

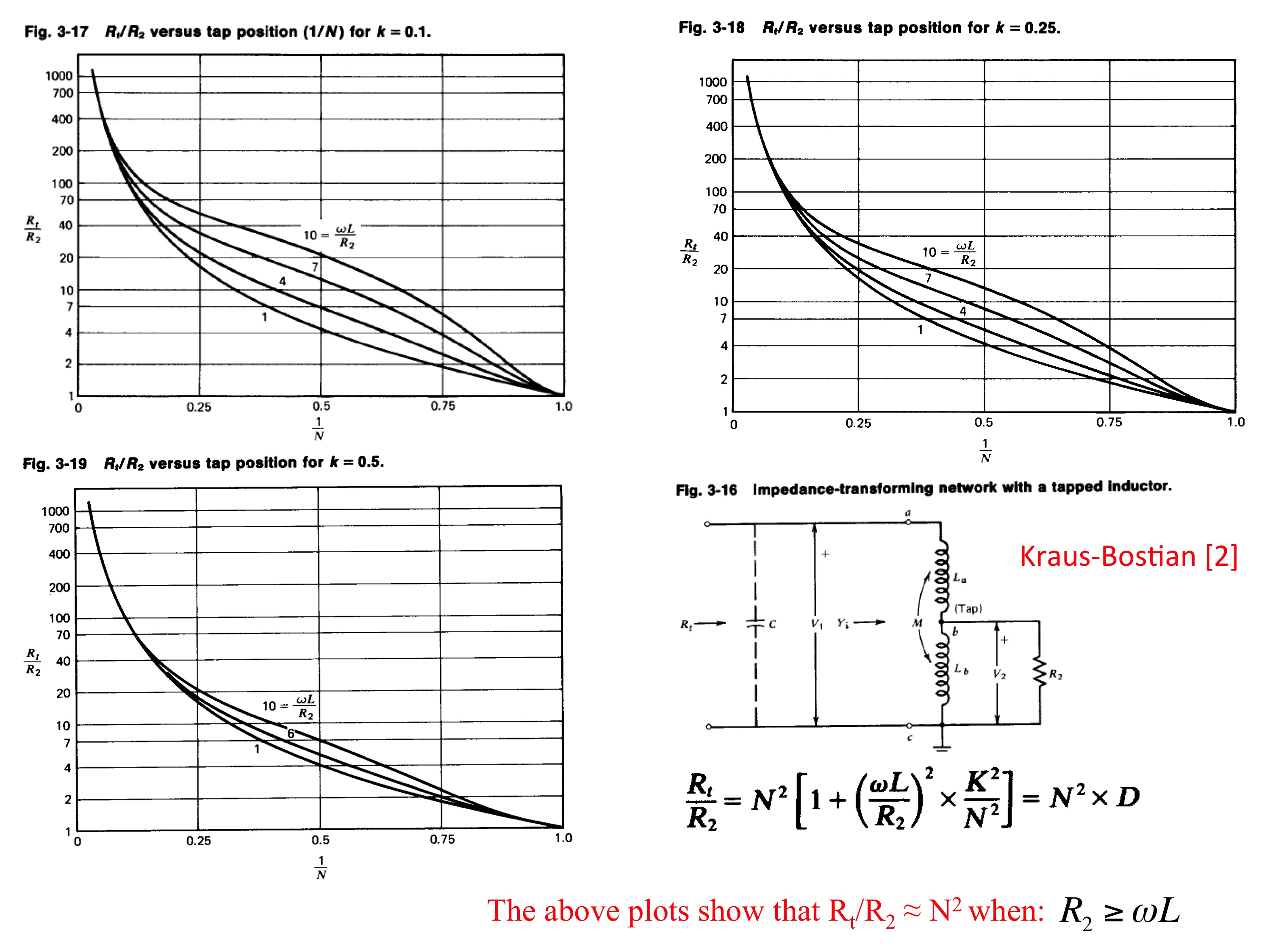

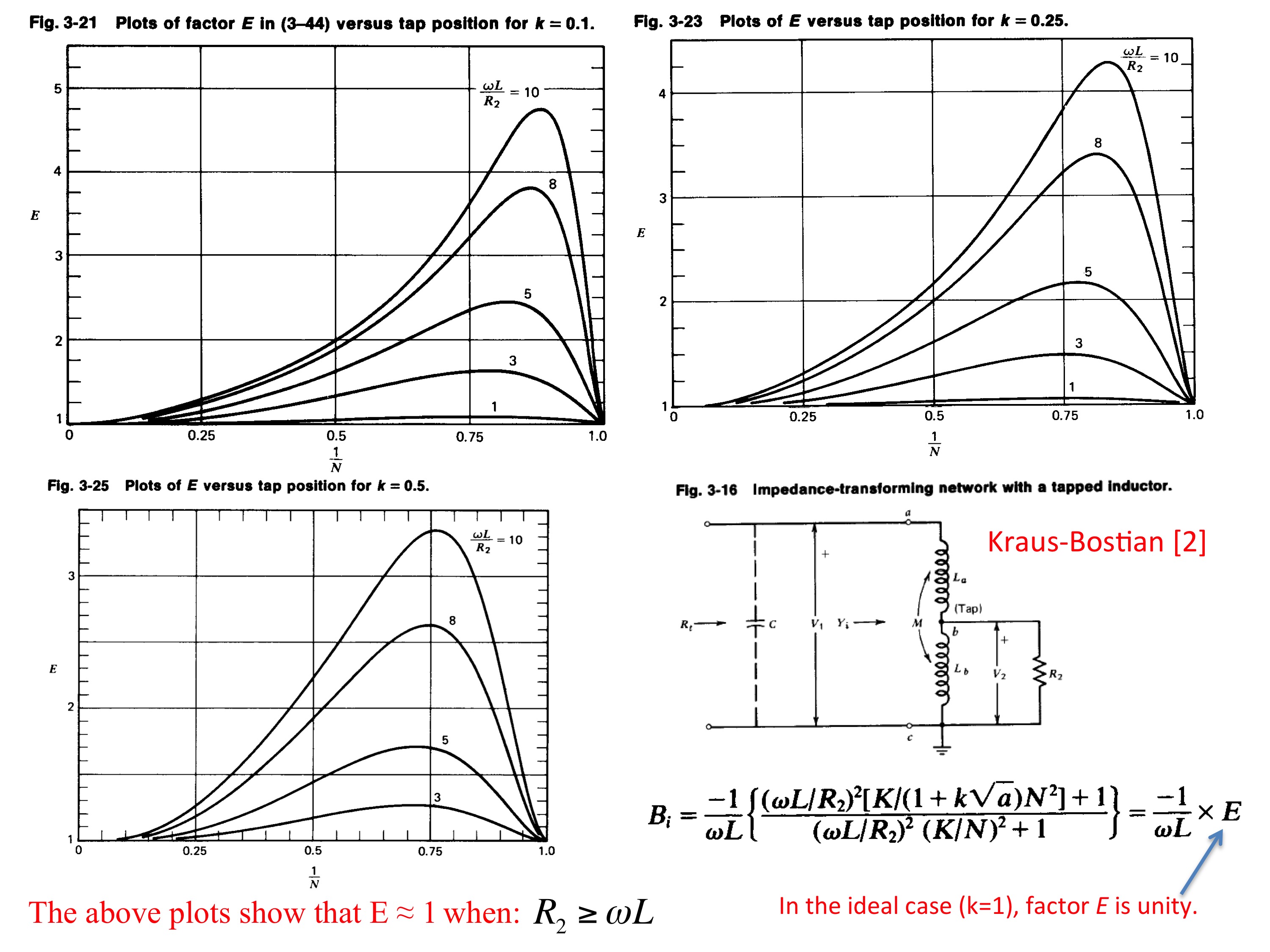

Figure 10. Non-ideal tapped inductor (auto-transformer) characteristics
Figure 11. Non-ideal tapped inductor (auto-transformer) characteristics
Figure 12. Non-ideal tapped inductor (auto-transformer) characteristics

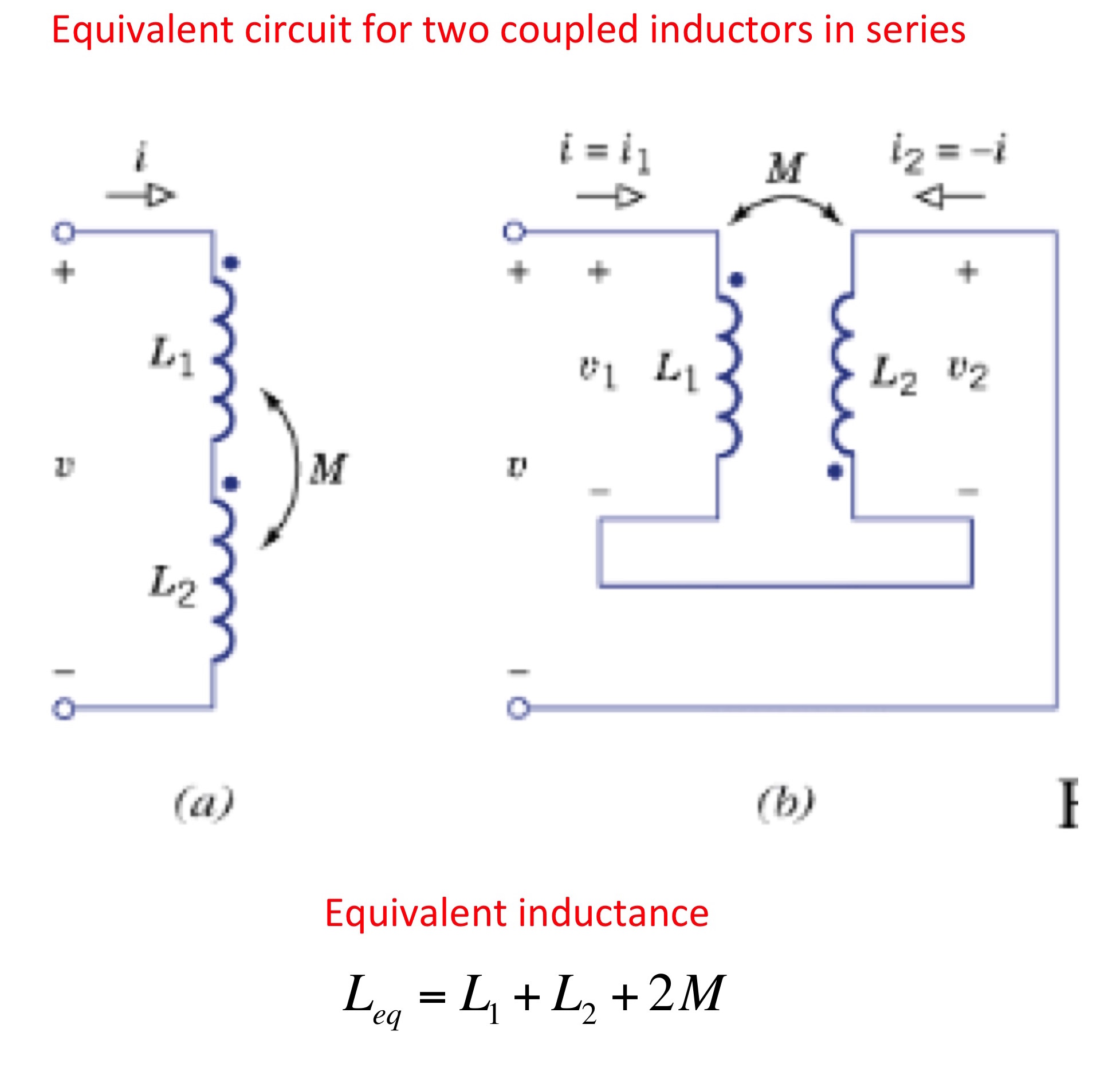

Figure 13. Equivalent circuit of two coupled inductors connected in series

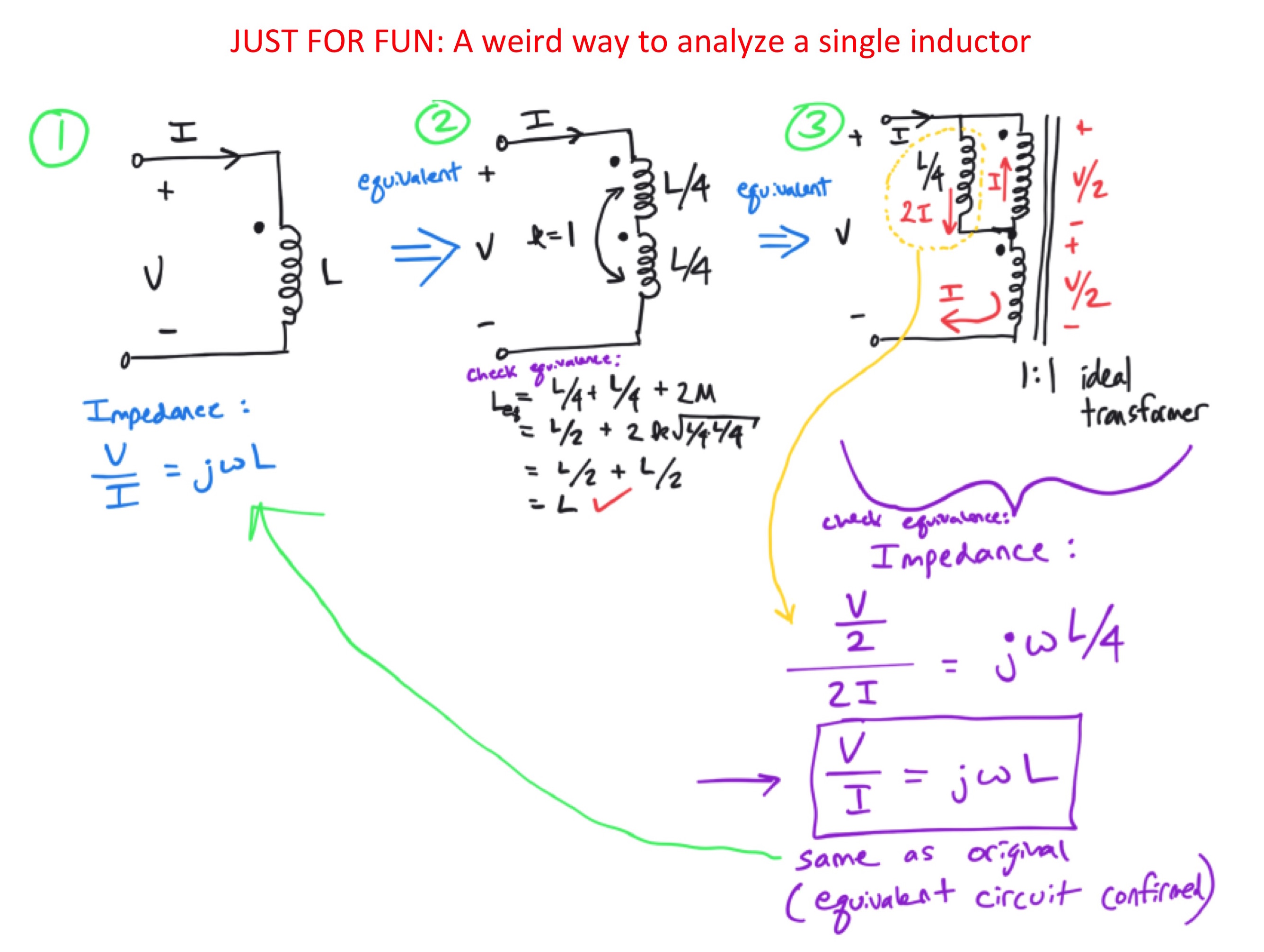

Figure 14. Just for fun: Decompose a single inductor into two coupled inductors in series

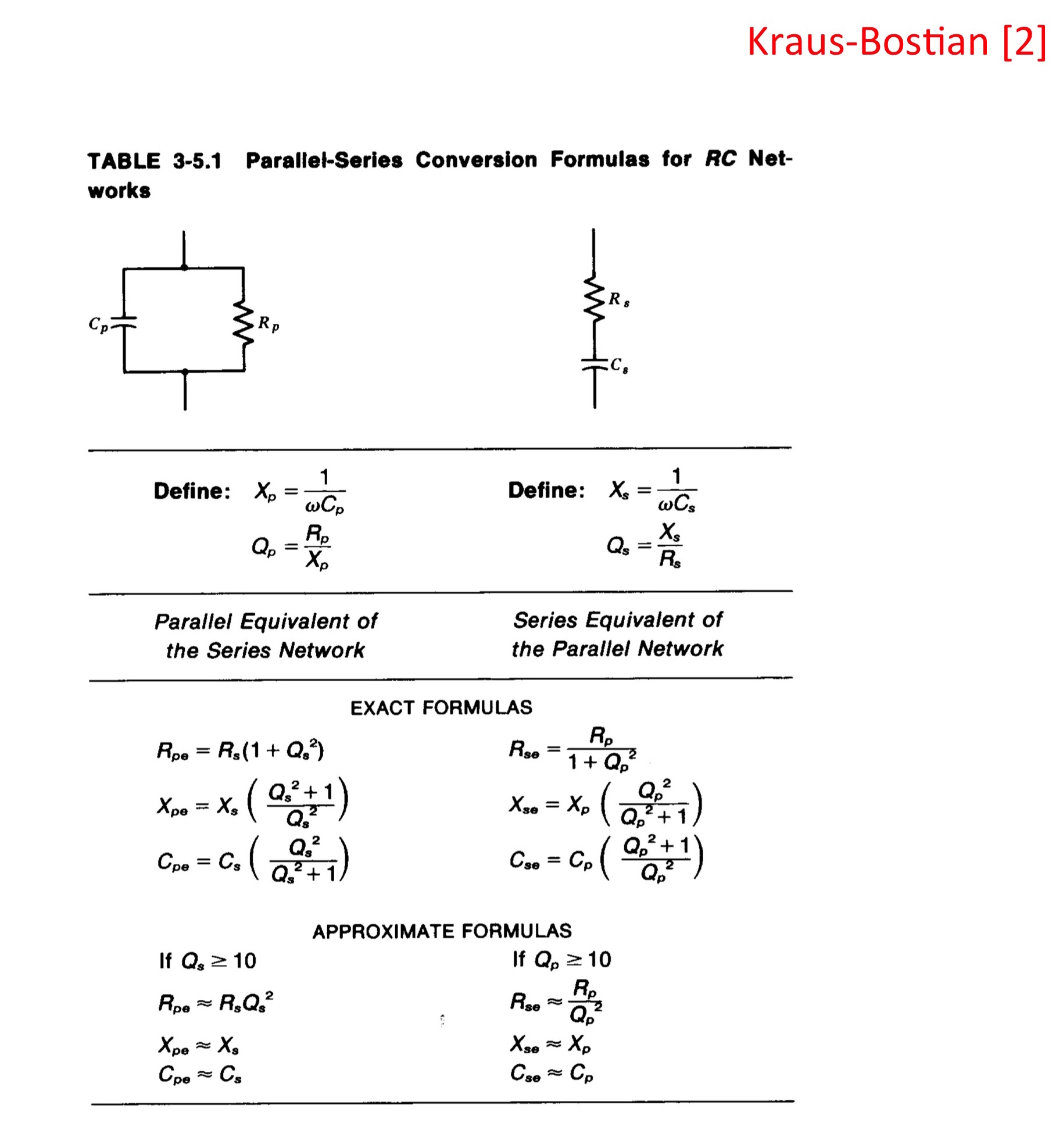

Figure 15. Parallel series conversion formulas for RC networks

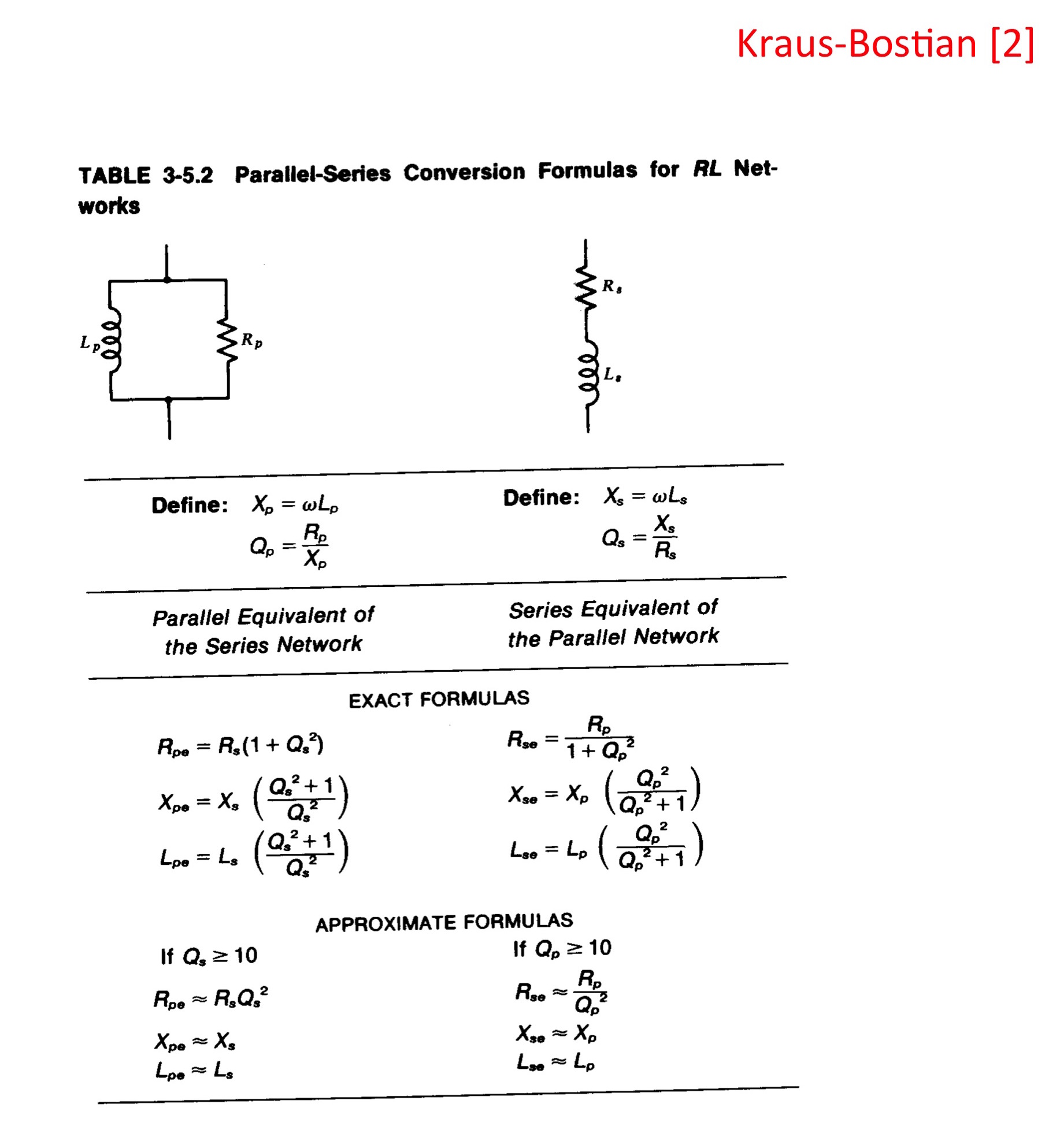

Figure 16. Parallel series conversion formulas for RL networks

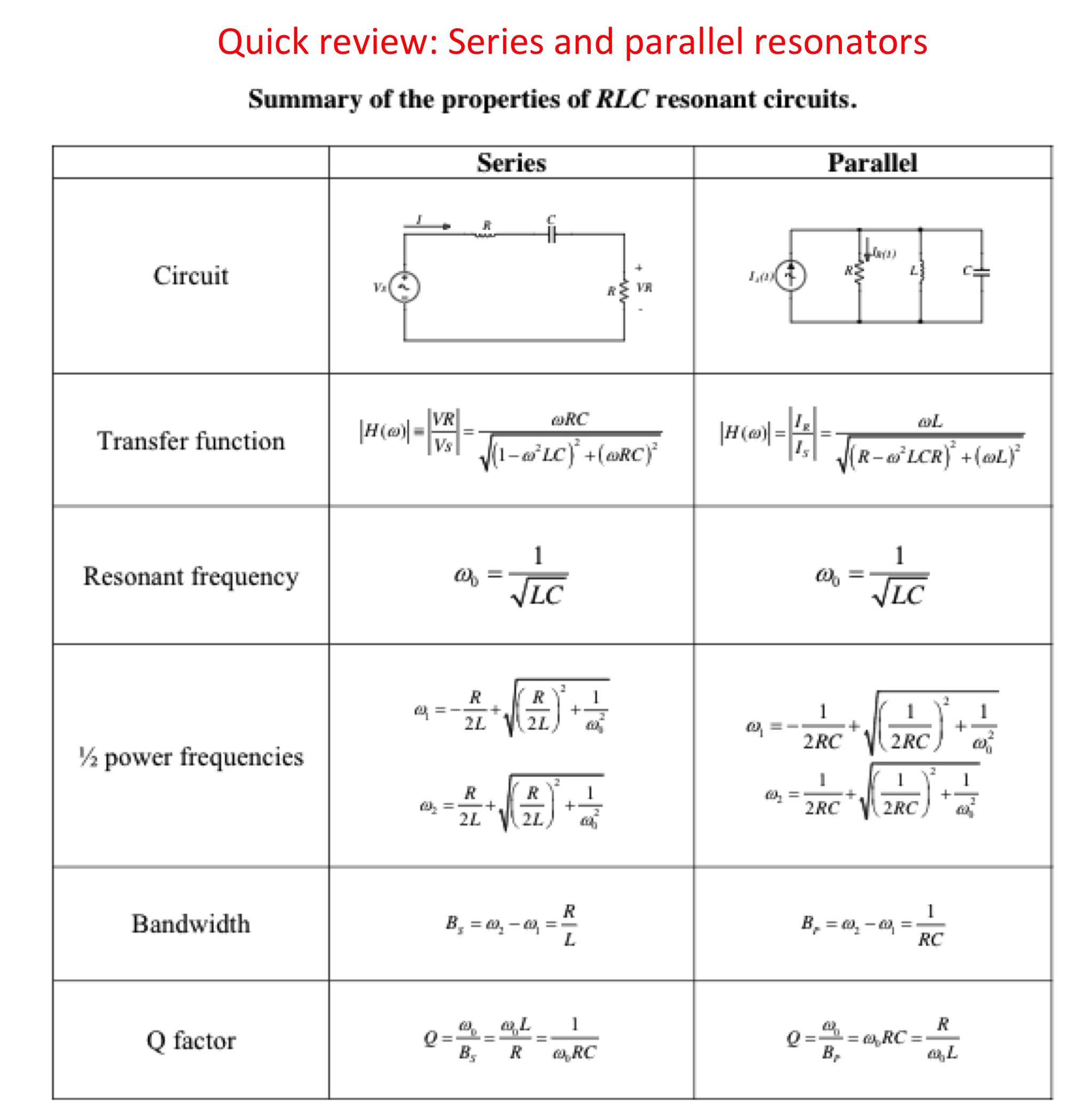

Figure 17. Summary of the properties of RLC resonant circuits

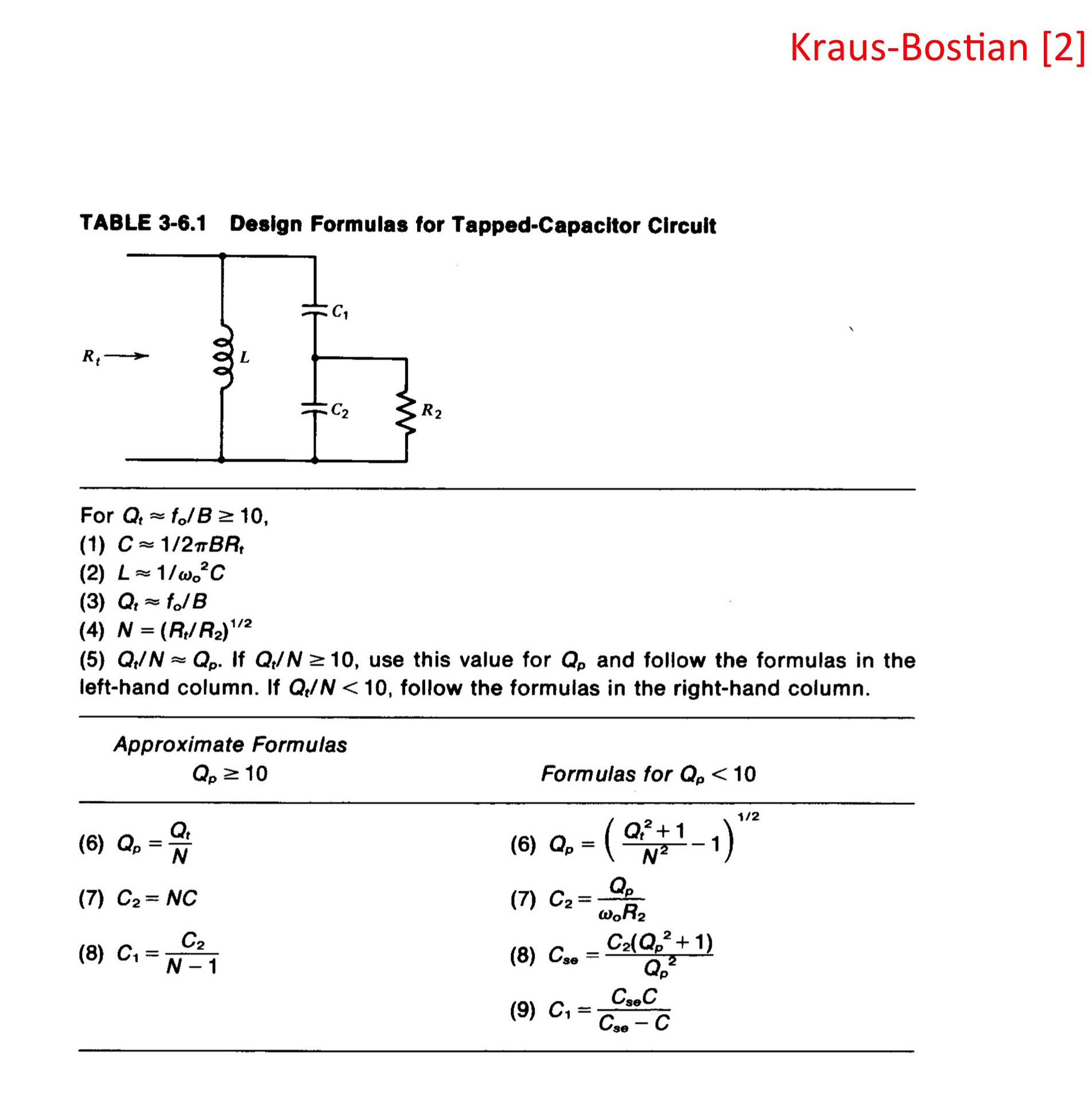

Figure 18. Design formulas for tapped capacitor circuit

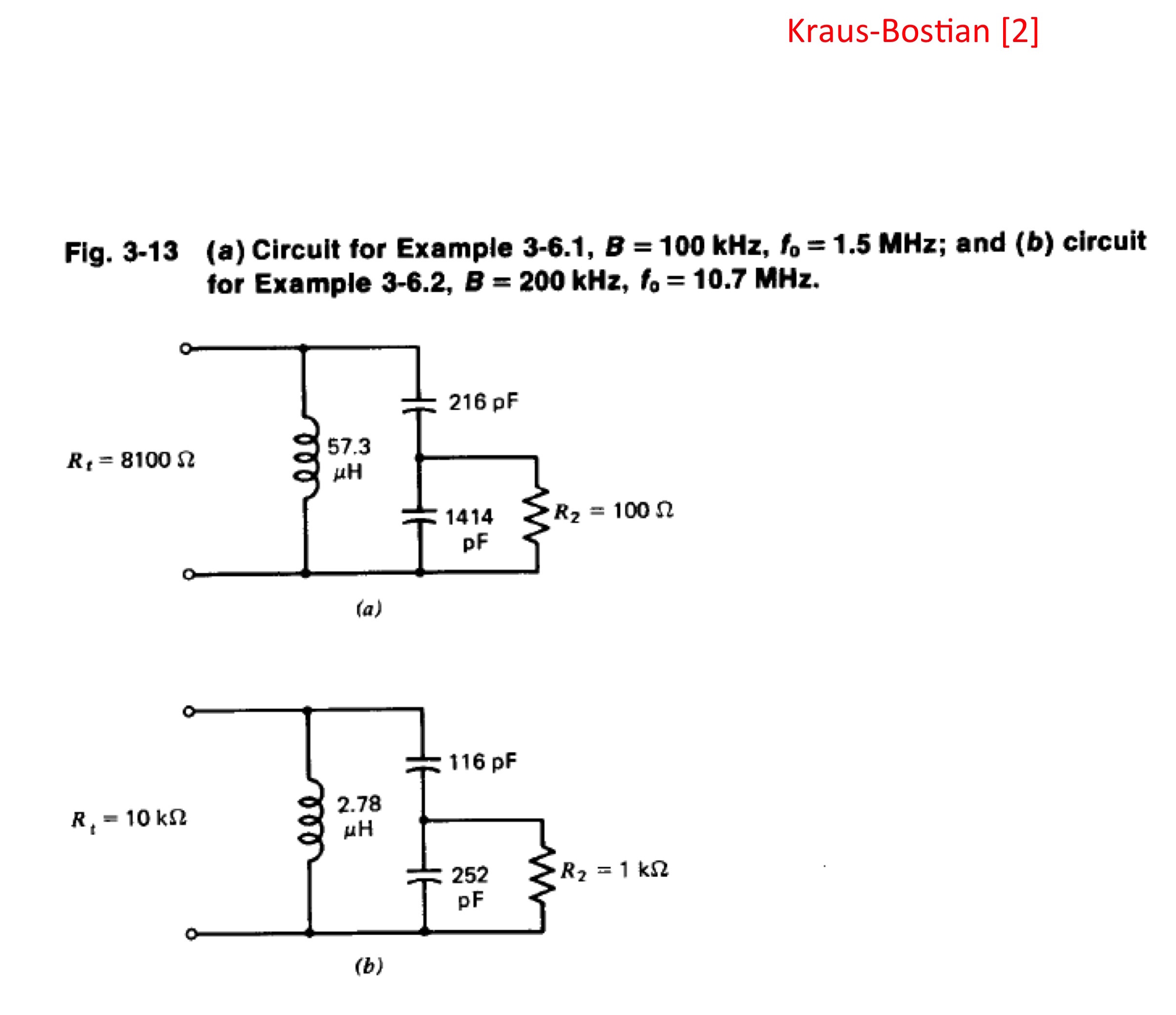

Figure 19. Tapped capacitor circuit design example

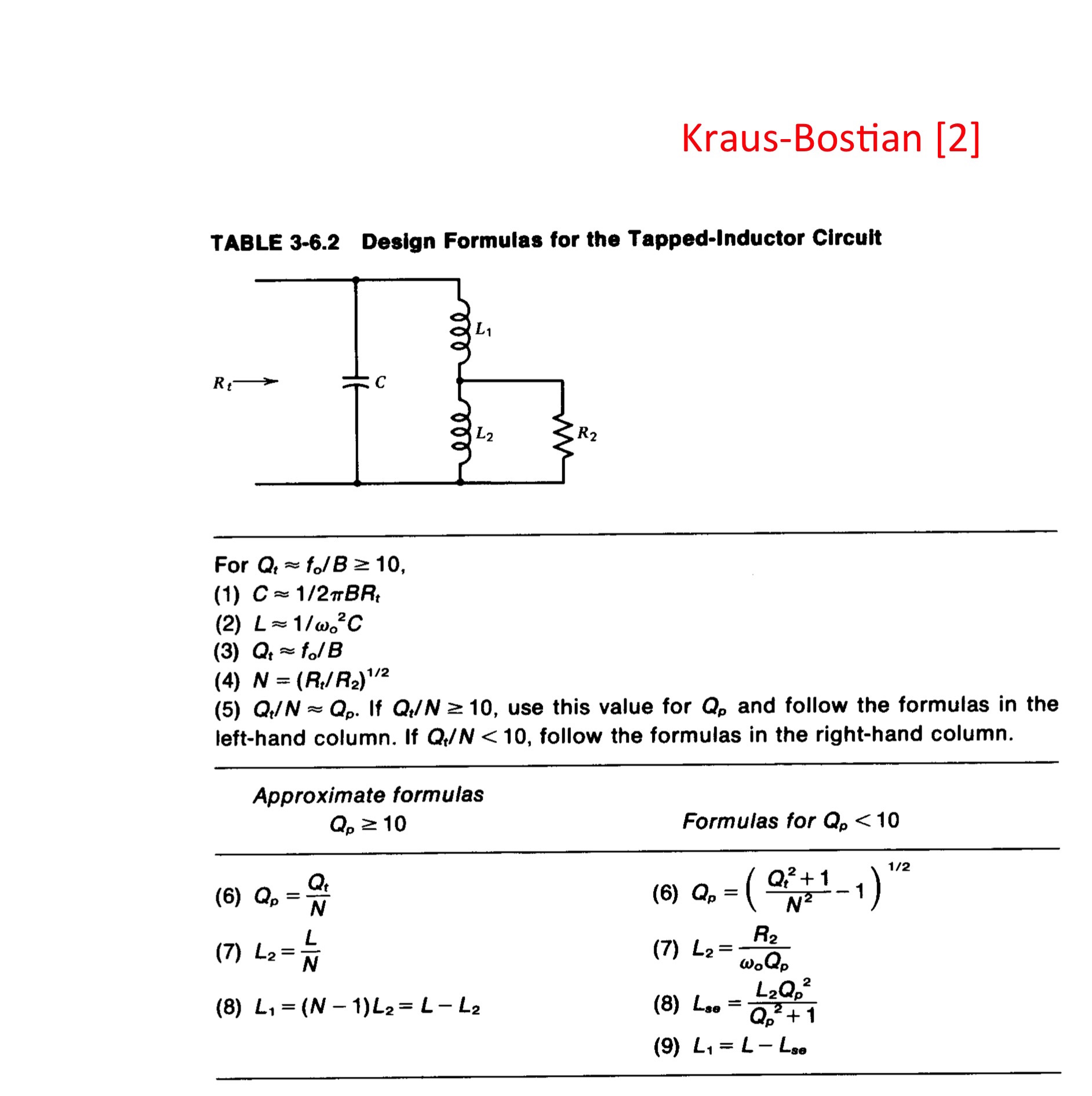

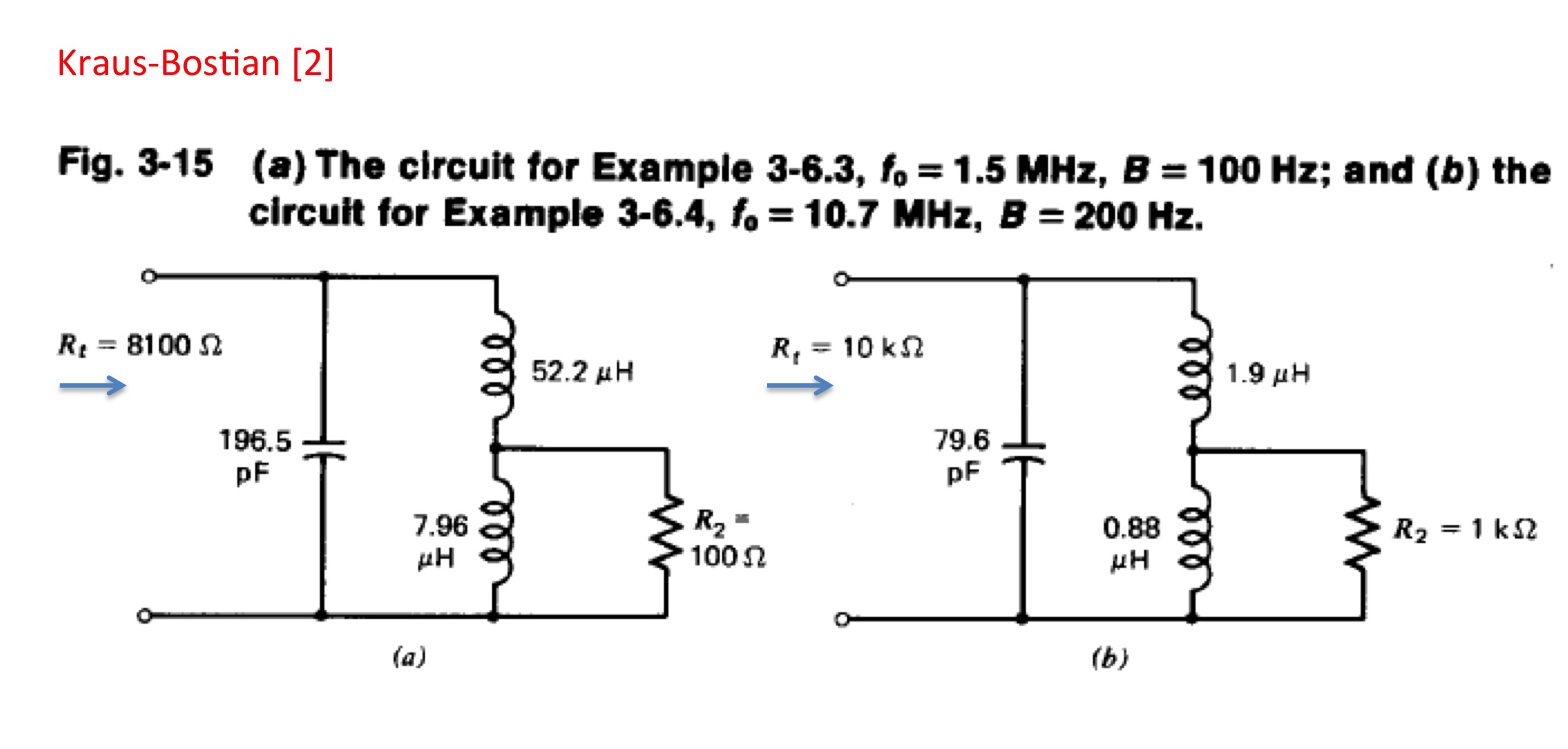

Figure 20. Design formulas for tapped inductor circuit

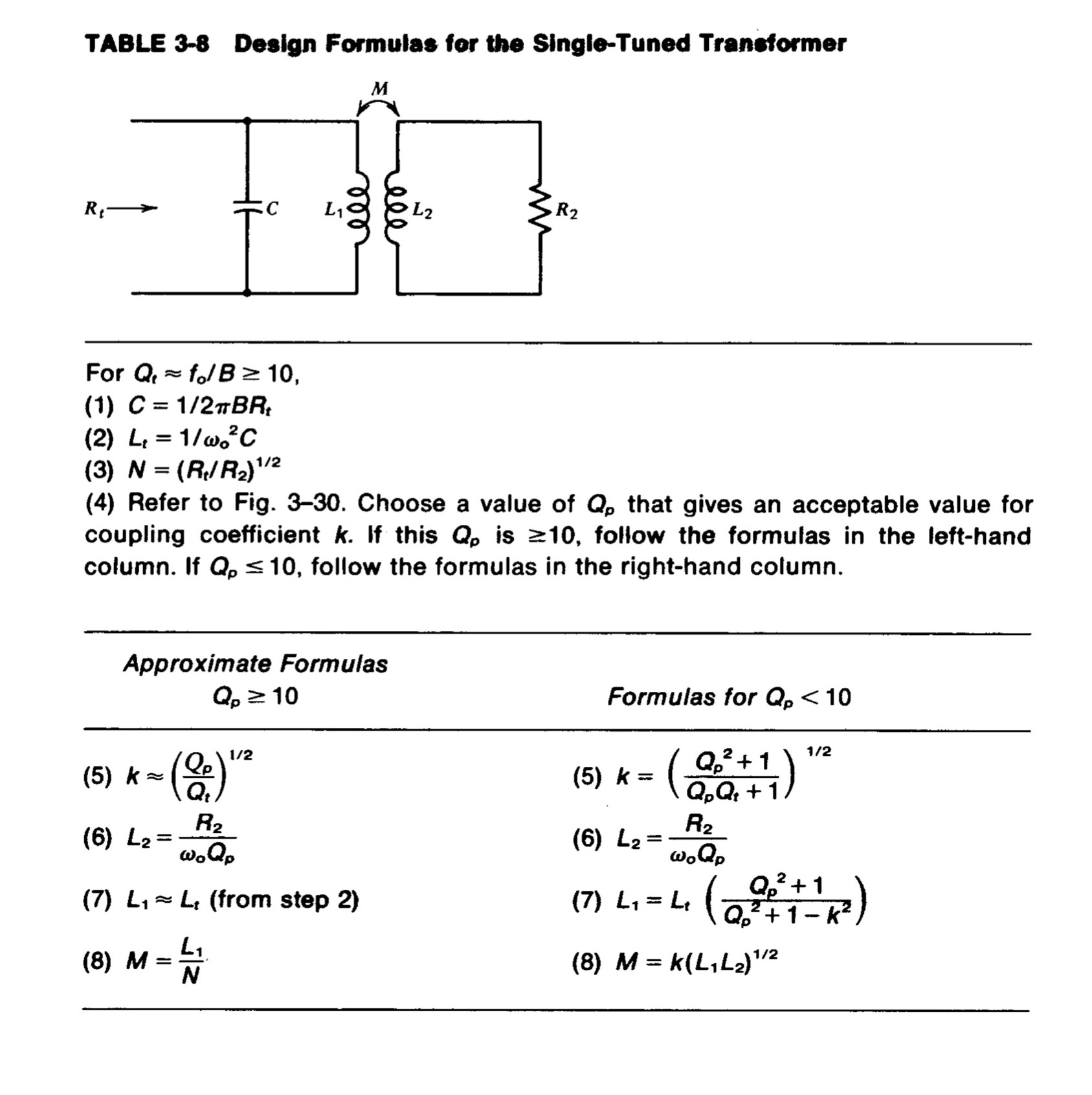

Figure 21. Tapped inductor circuit design example Figure 22. Design formulas for the single tuned transformer

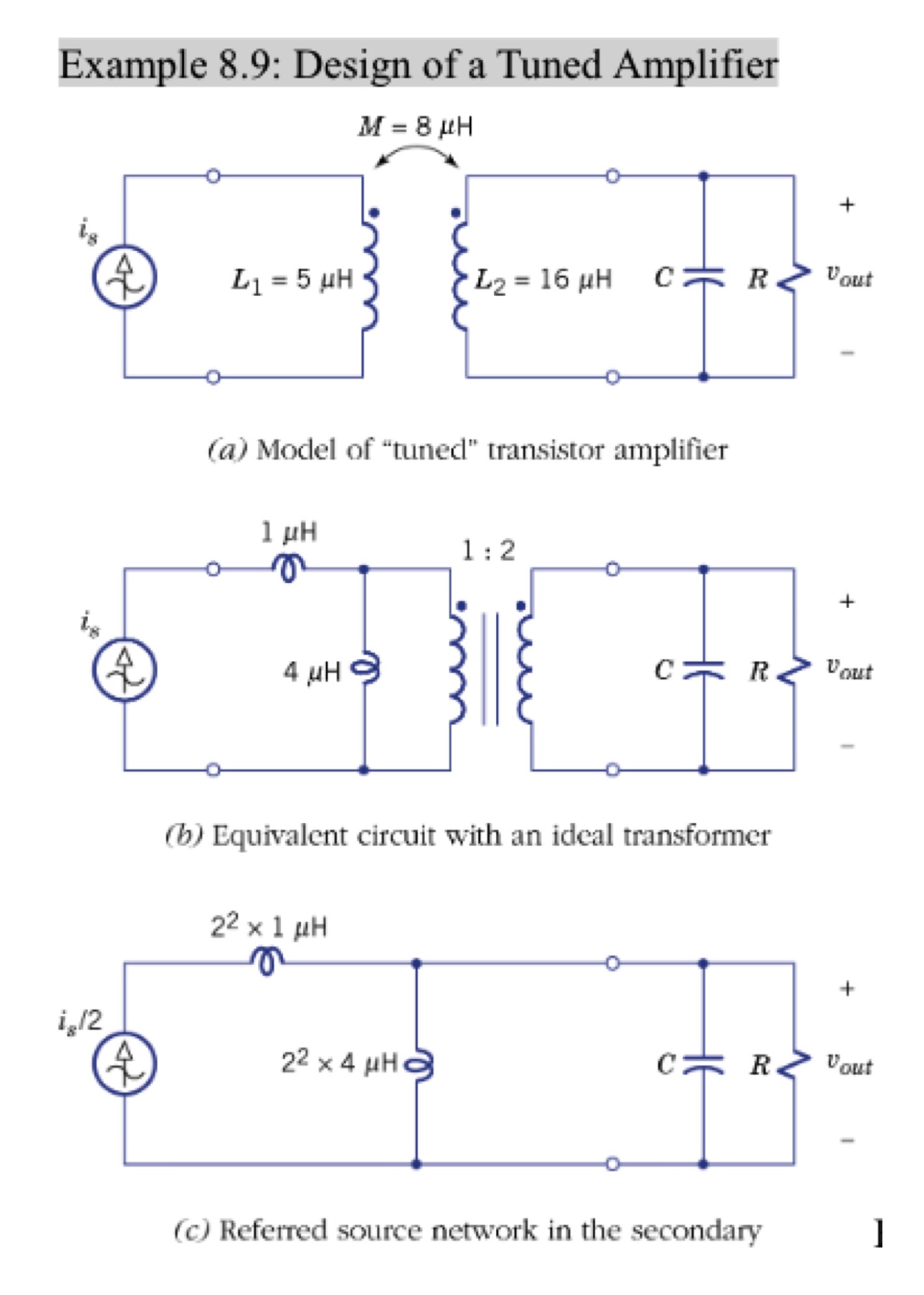

Figure 23. Example: Design of a tuned amplifier

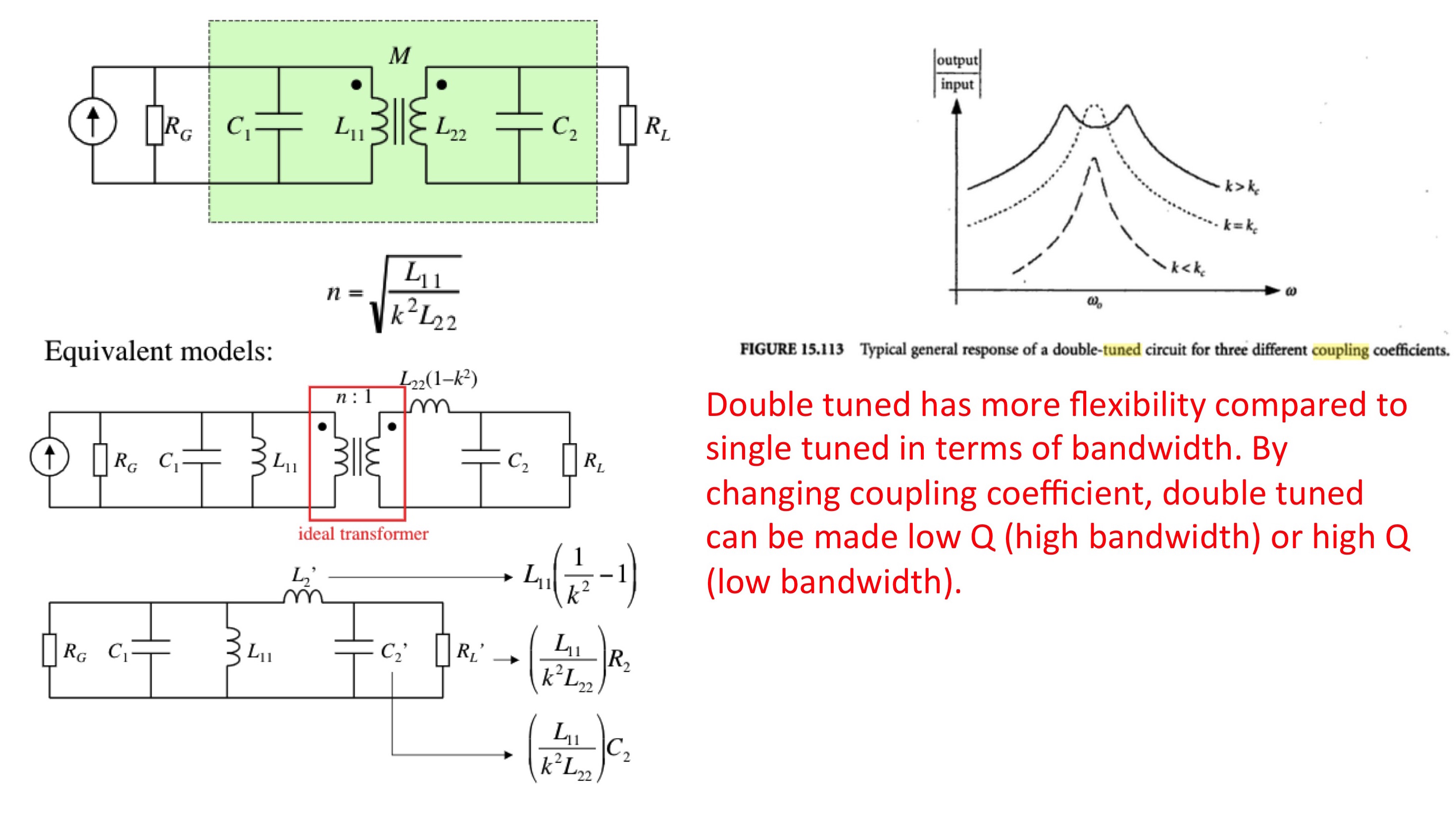

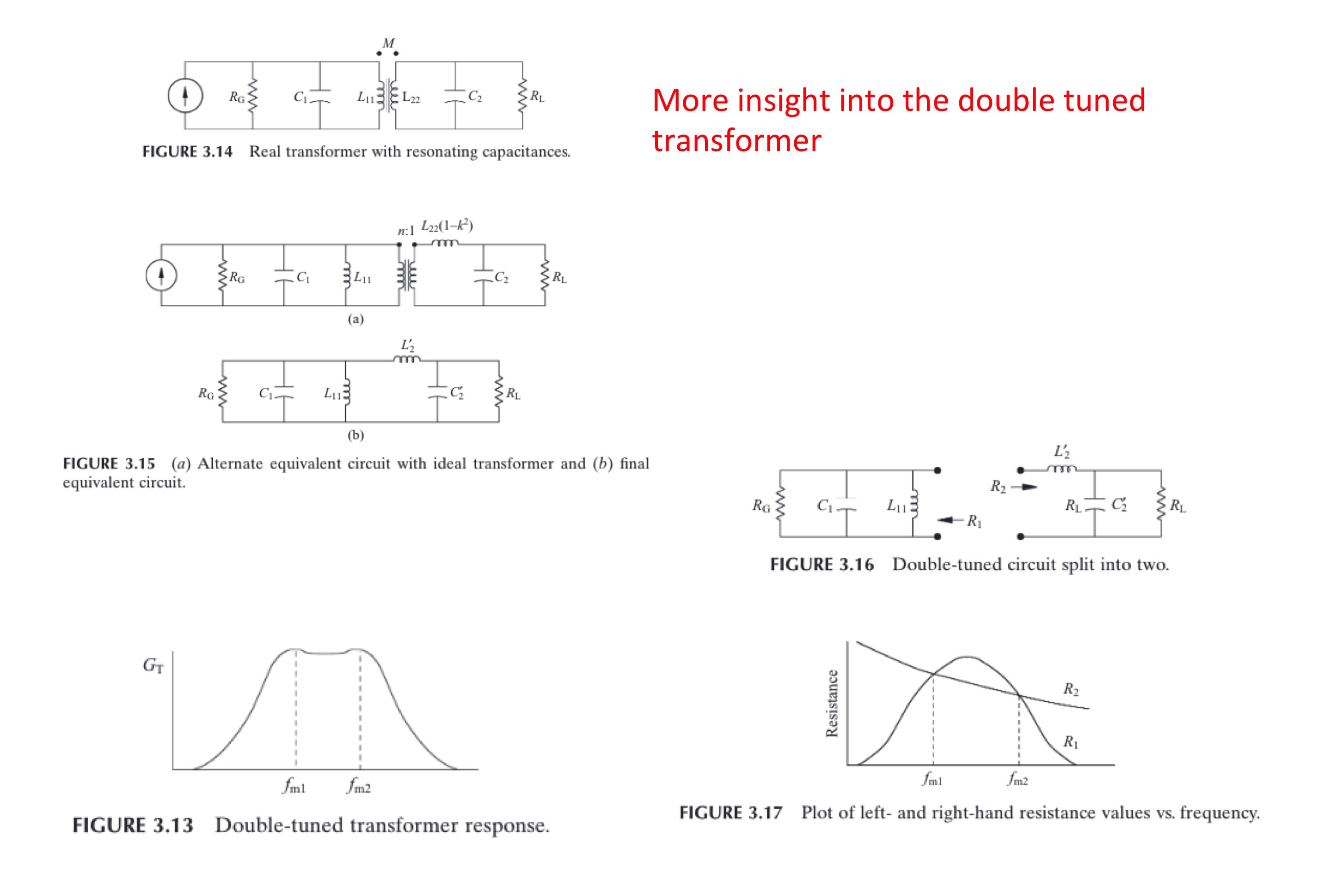

Figure 24. Double tuned transformer equivalent circuit
Figure 25. Double tuned transformer equivalent circuit and insight

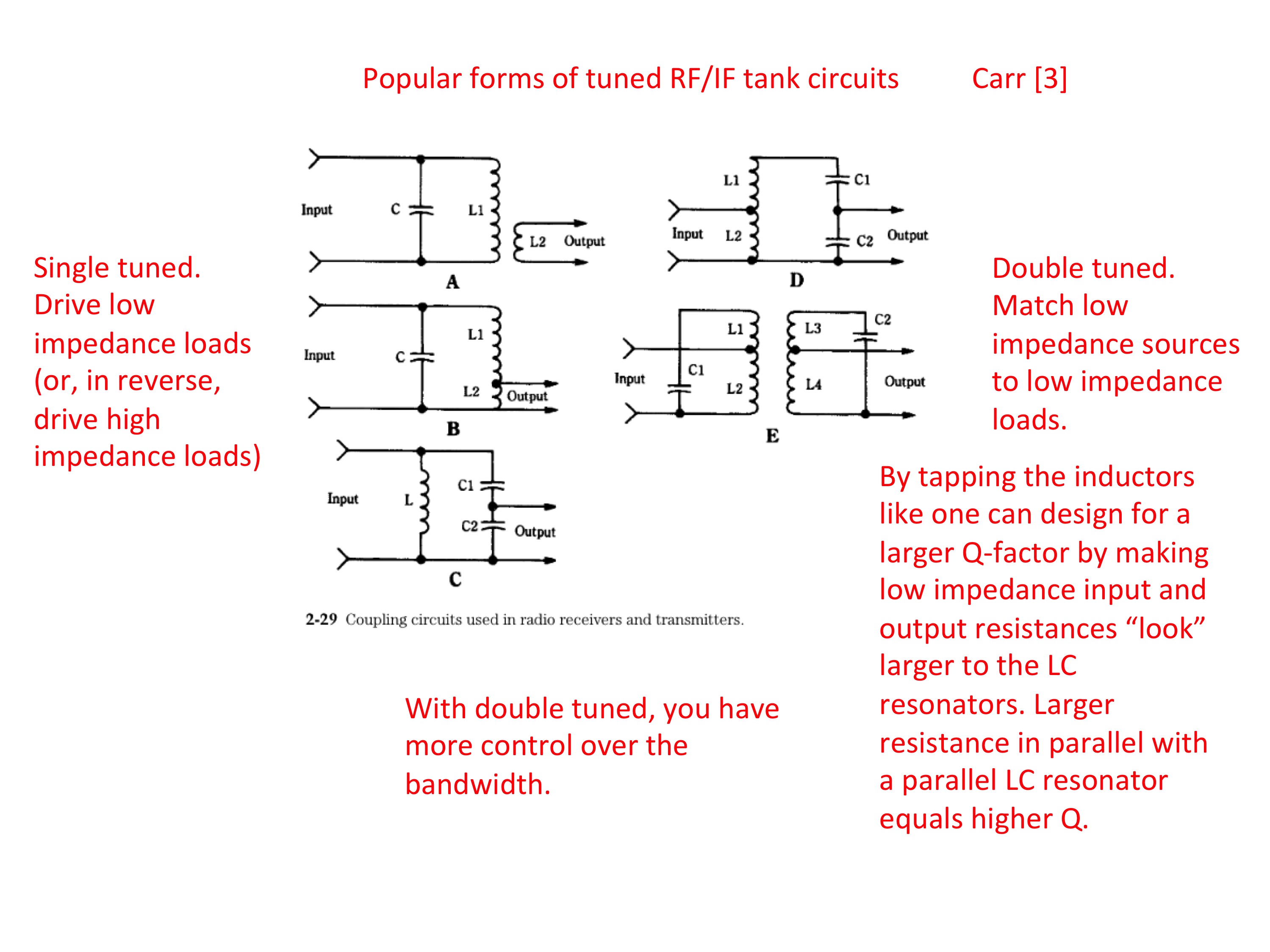

Figure 26. Popular forms of tuned RF/IF tank circuits

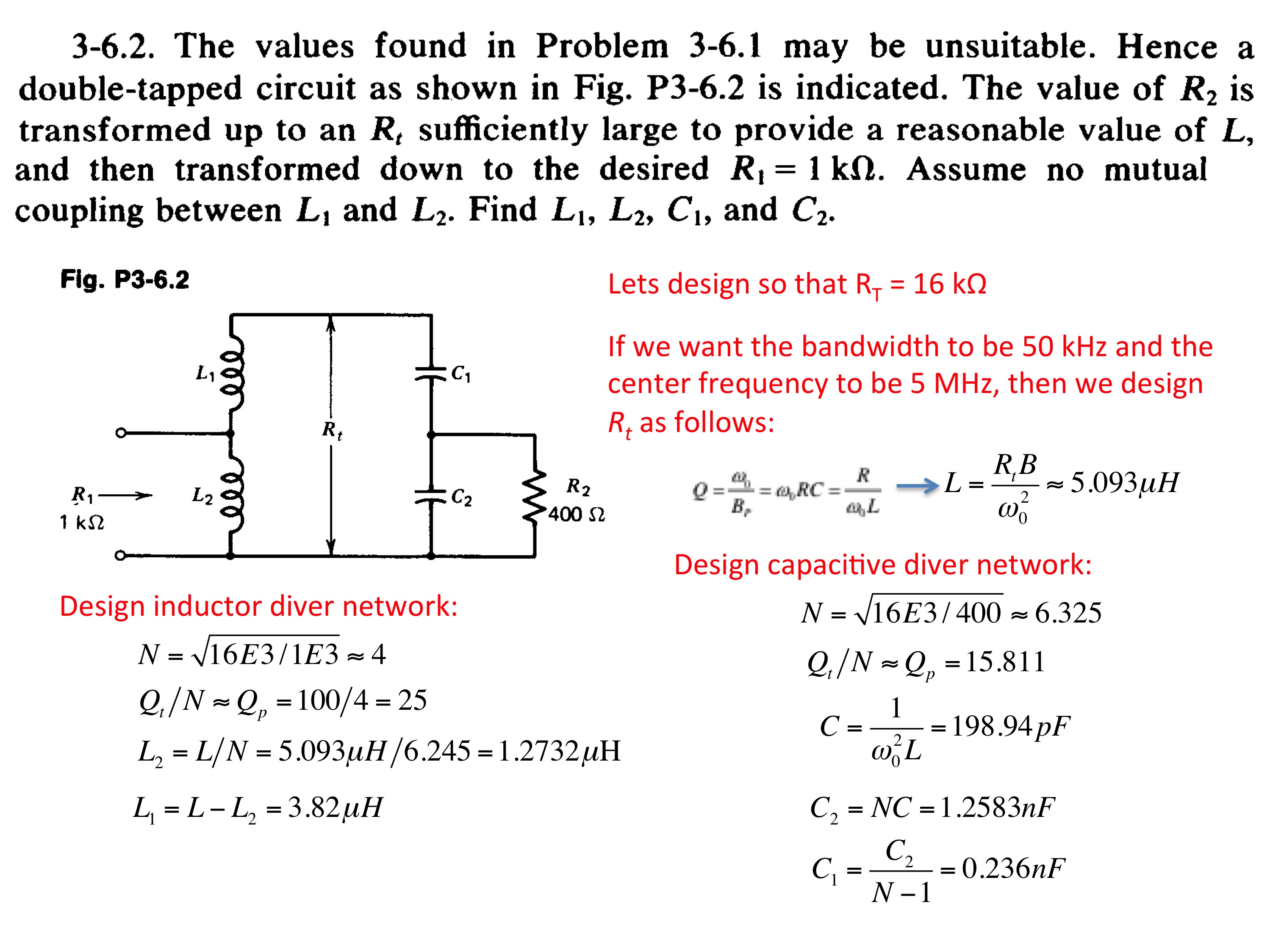

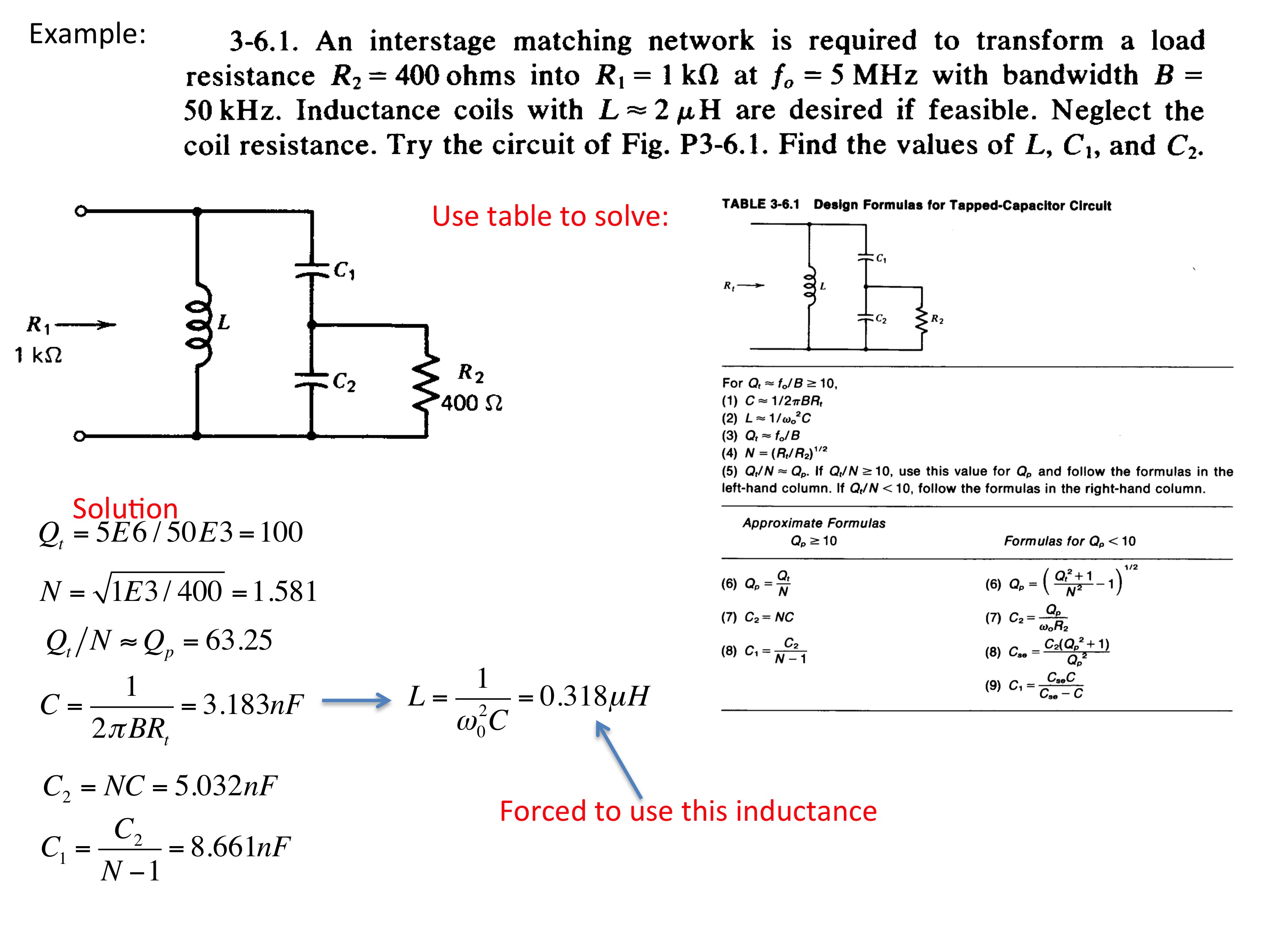

Figure 27. Tapped capacitor matching example

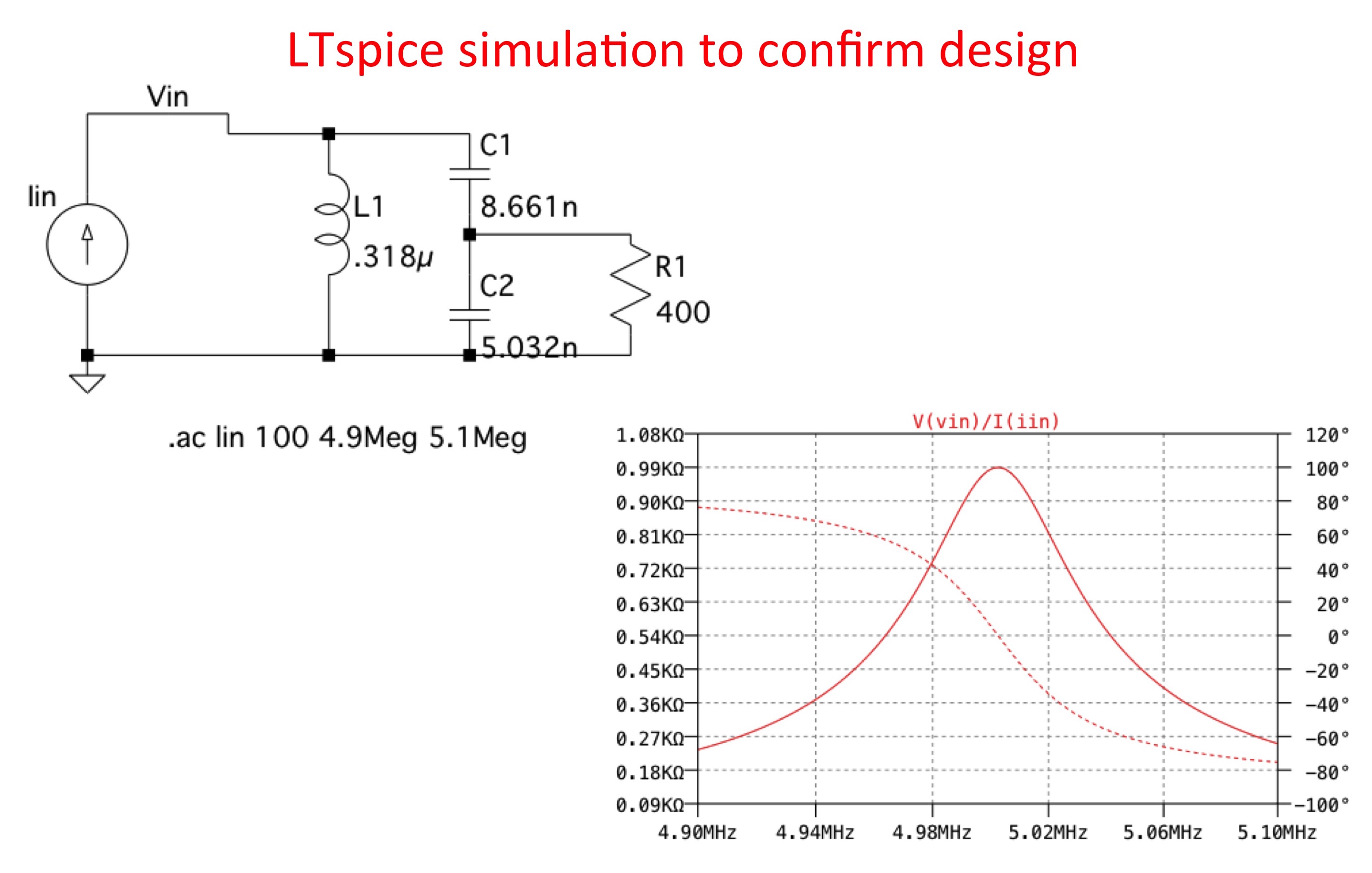

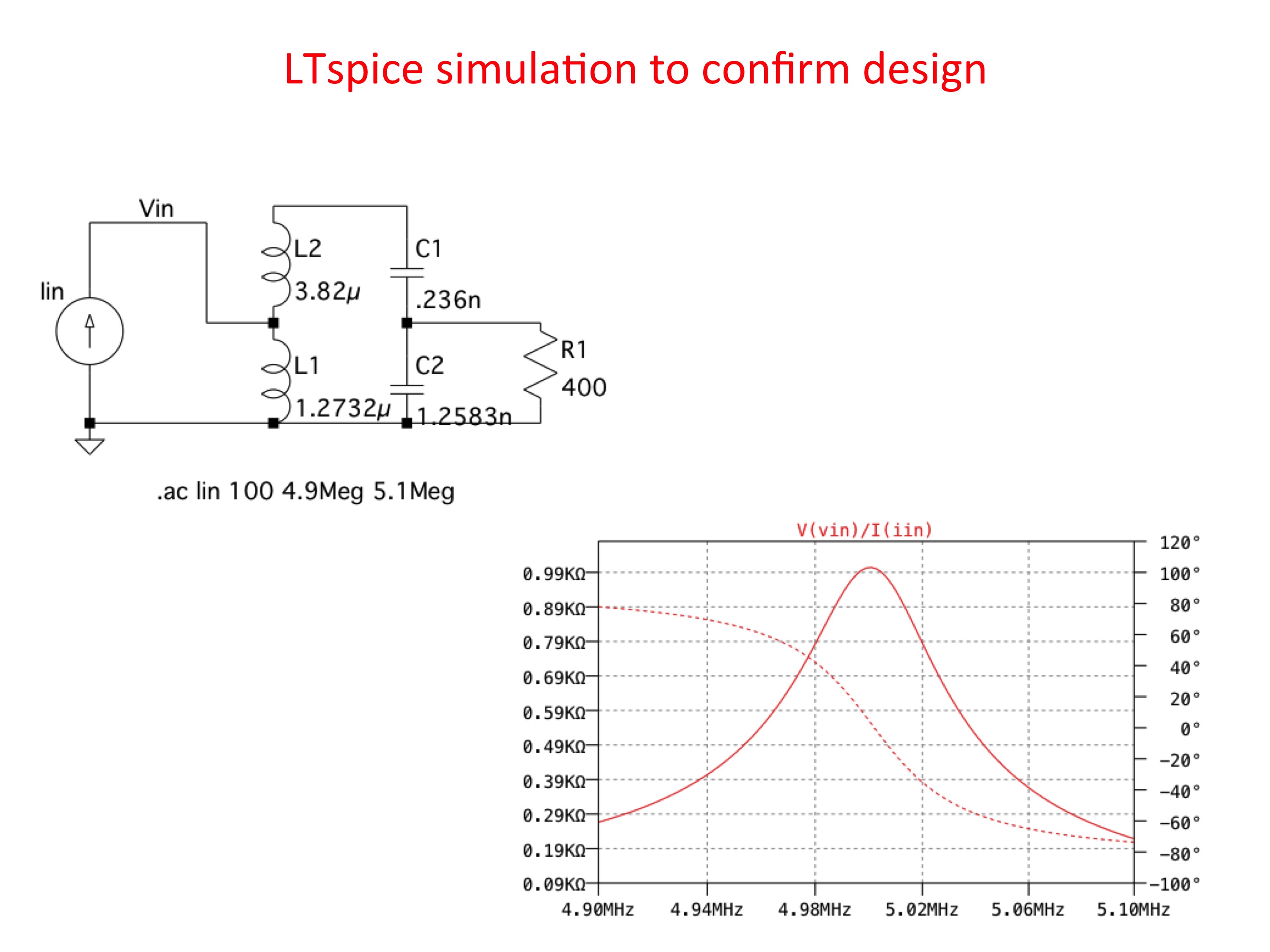

Figure 28. LTspice confirmation of previous example
Figure 29. Tapped capacitor + tapped inductor matching example
Figure 30. LTspice confirmation of previous example

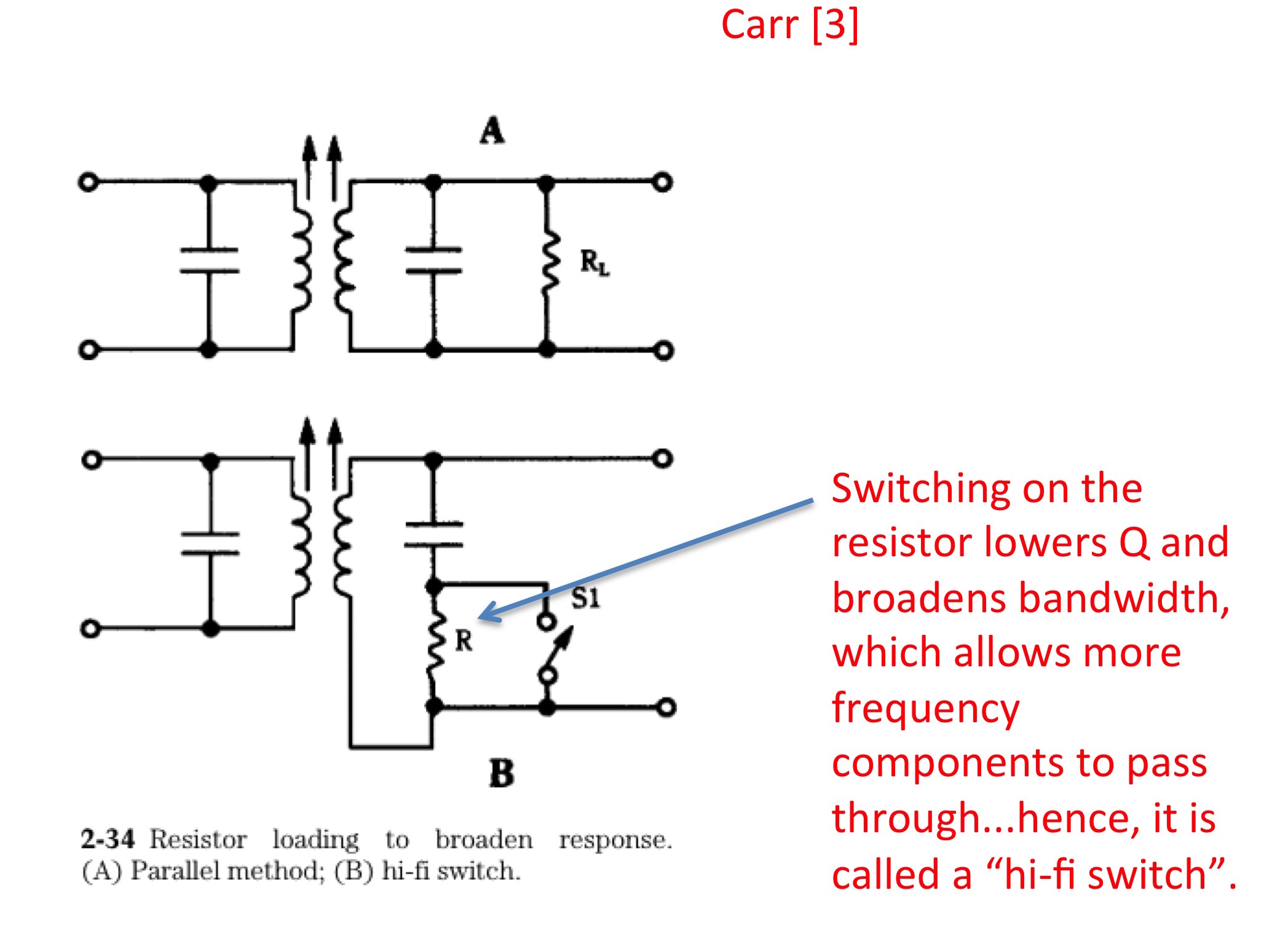

Figure 31. Hi-Fi switch

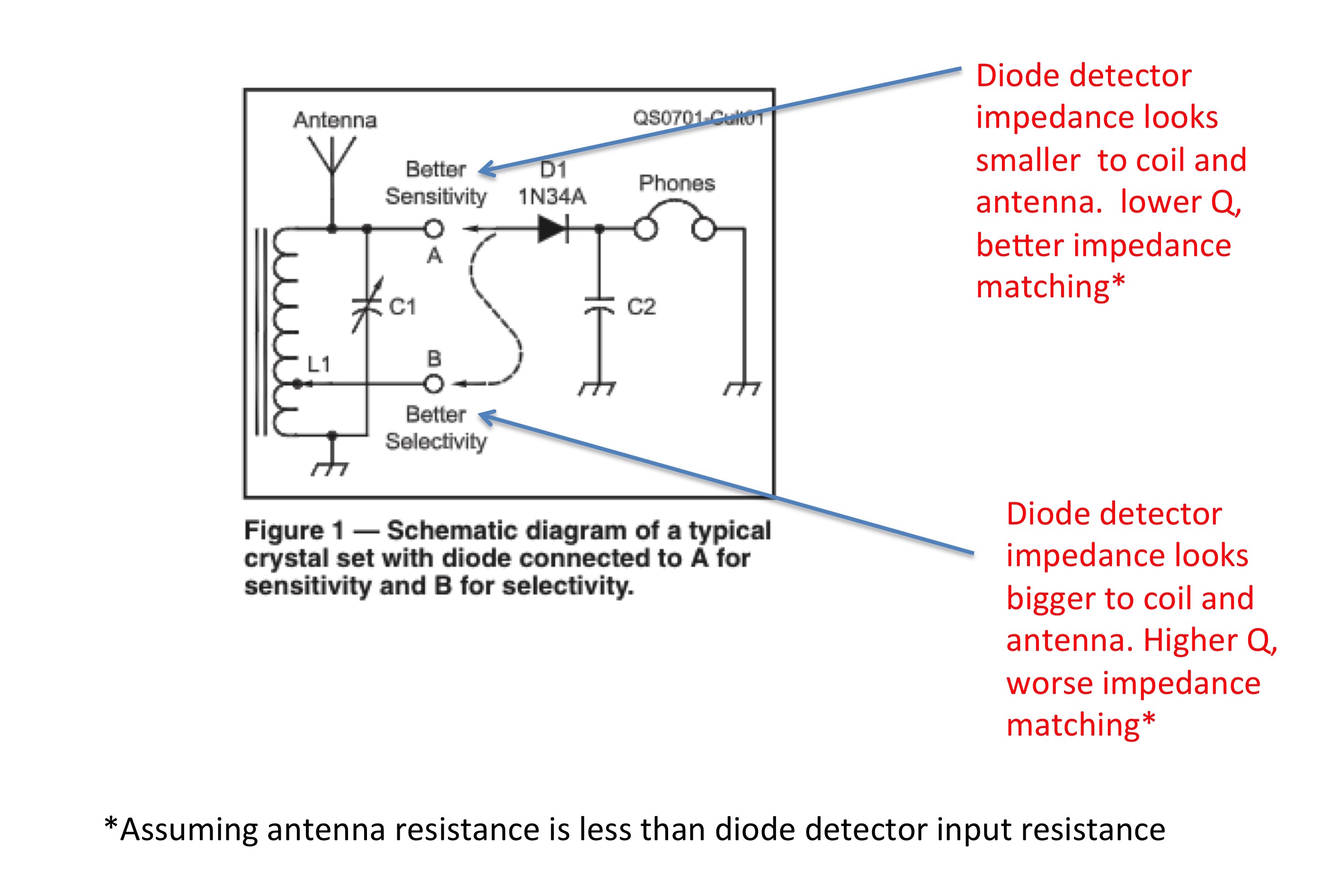

Figure 32. Tapped capacitor crystal radio set. sensitivity versus selectivity

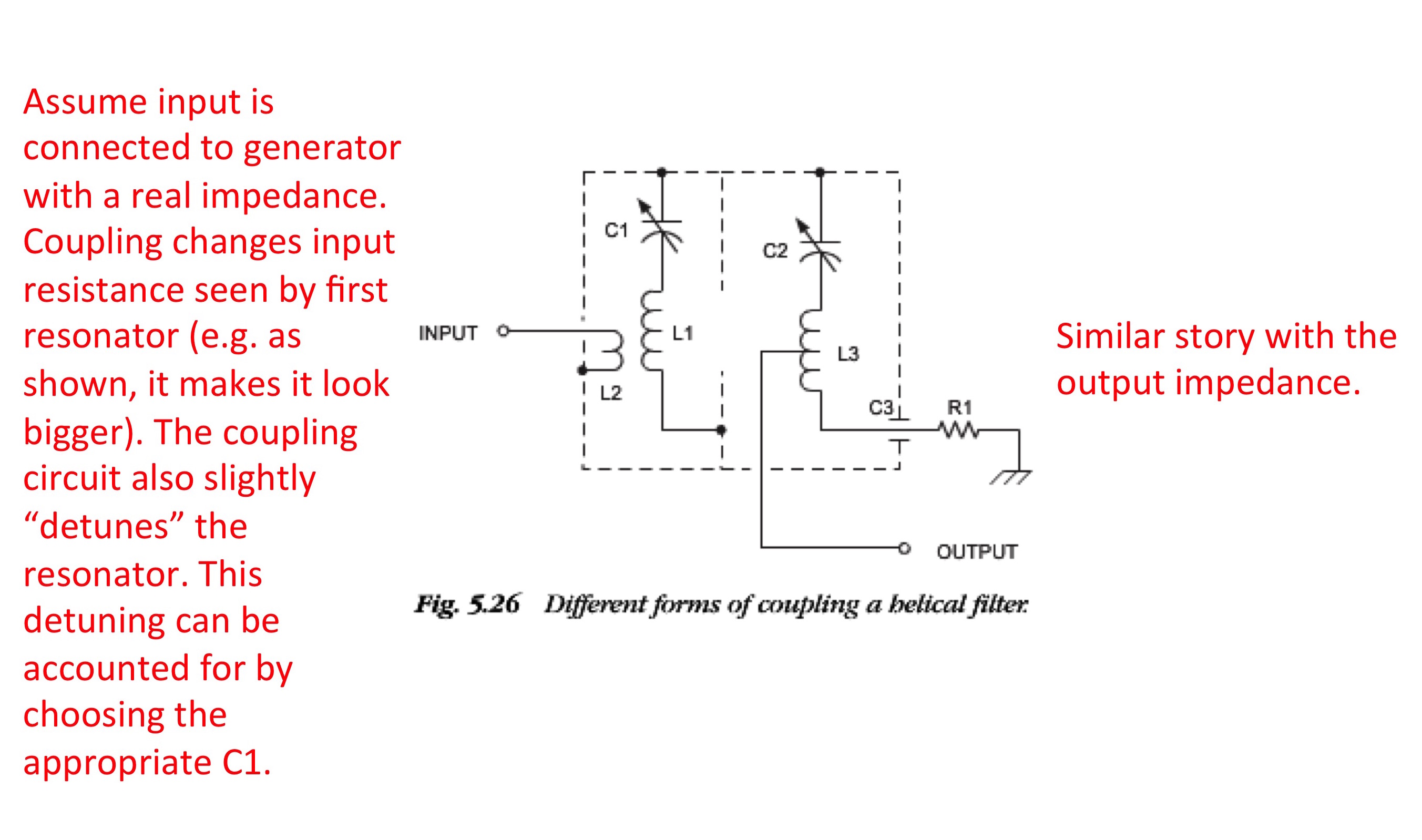

Figure 33. Coupling into and out of a filter

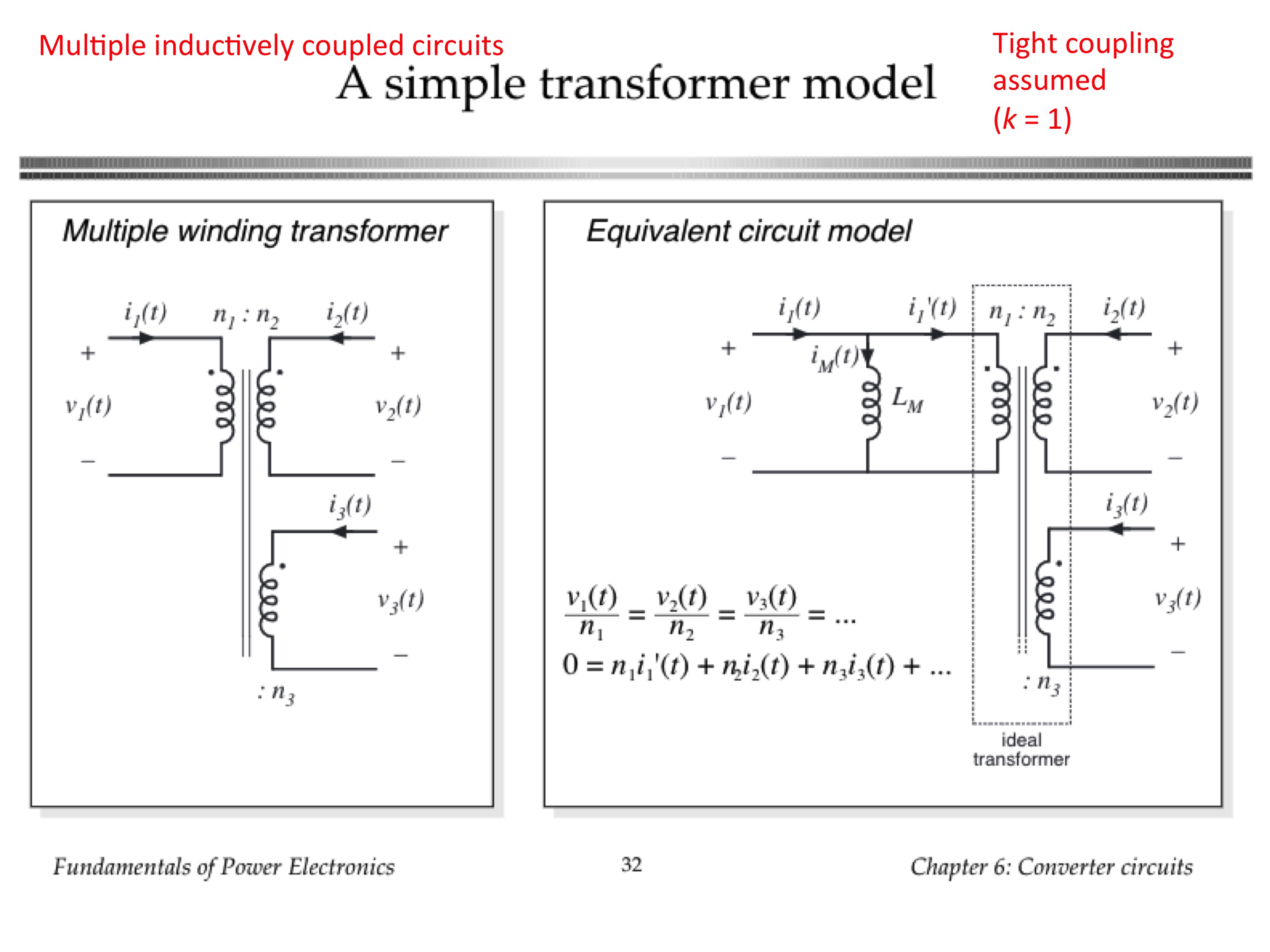

Figure 34. Multiple transformers equivalent circuit

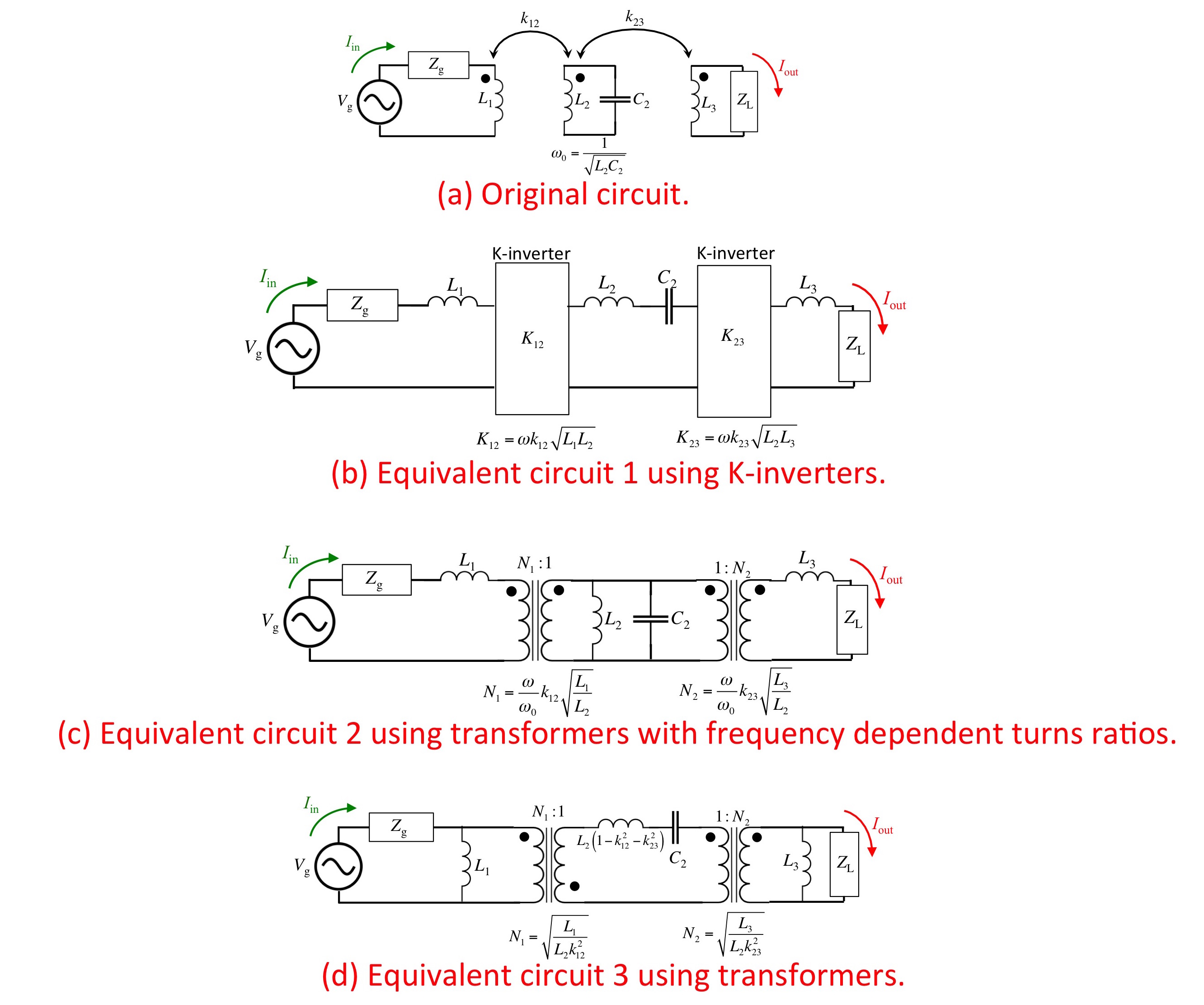

Figure 35. Three inductively coupled loops - equivalent circuits

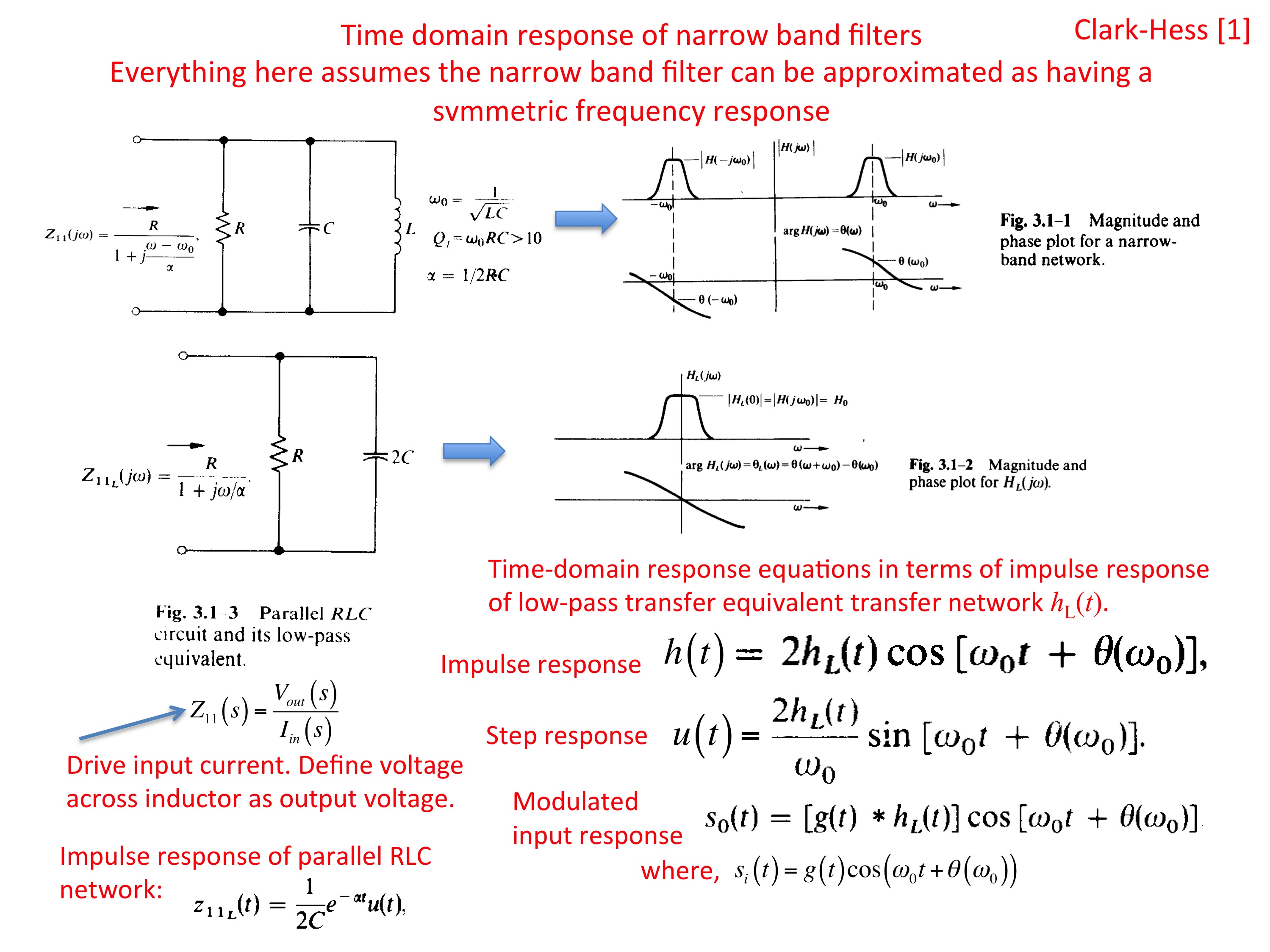

Figure 36. Time domain response of narrow band filters
Figure 37. Impulse response of parallel RLC circuit

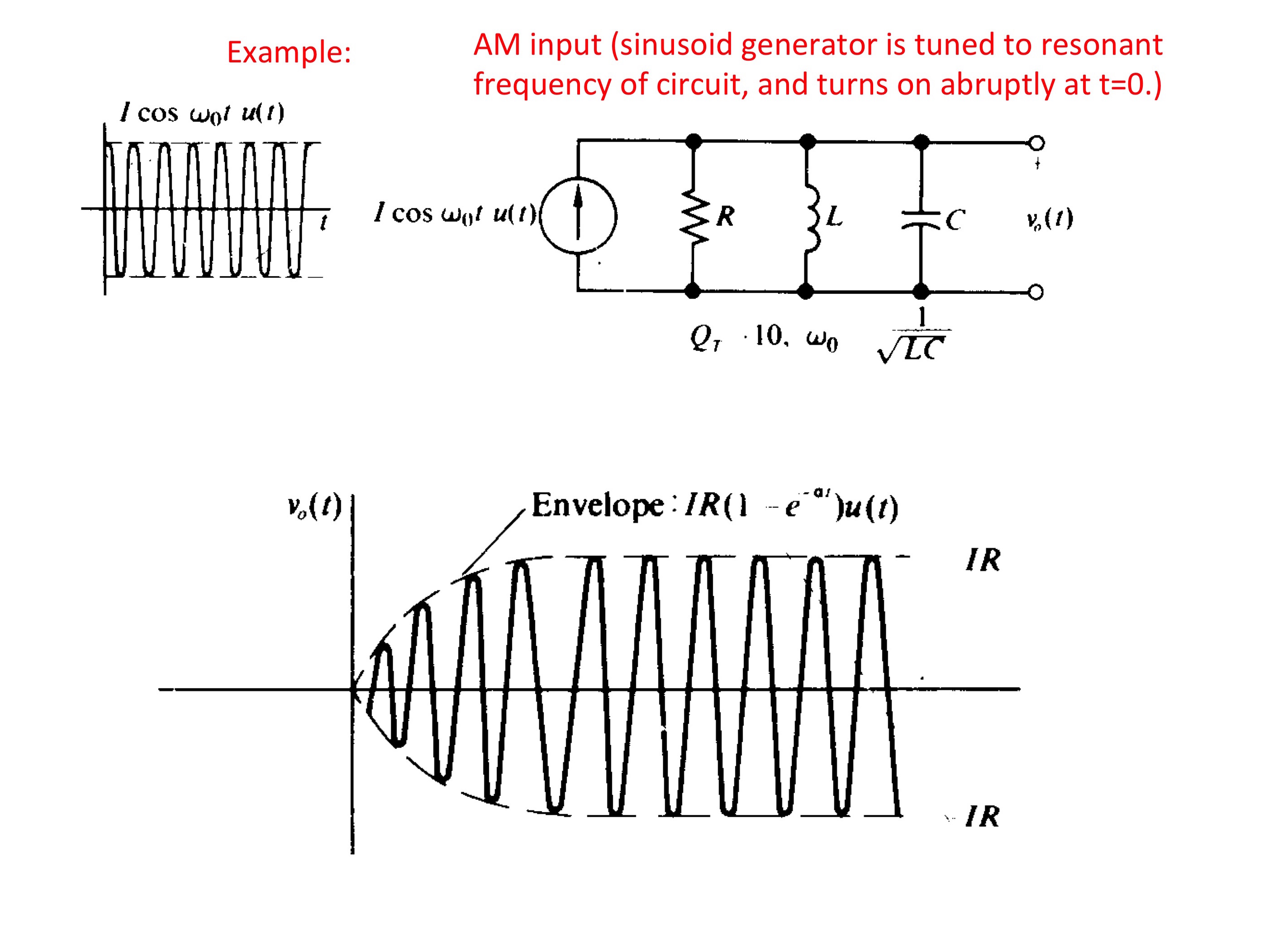

Figure 38. Transient response of parallel RLC circuit to sinusoid input

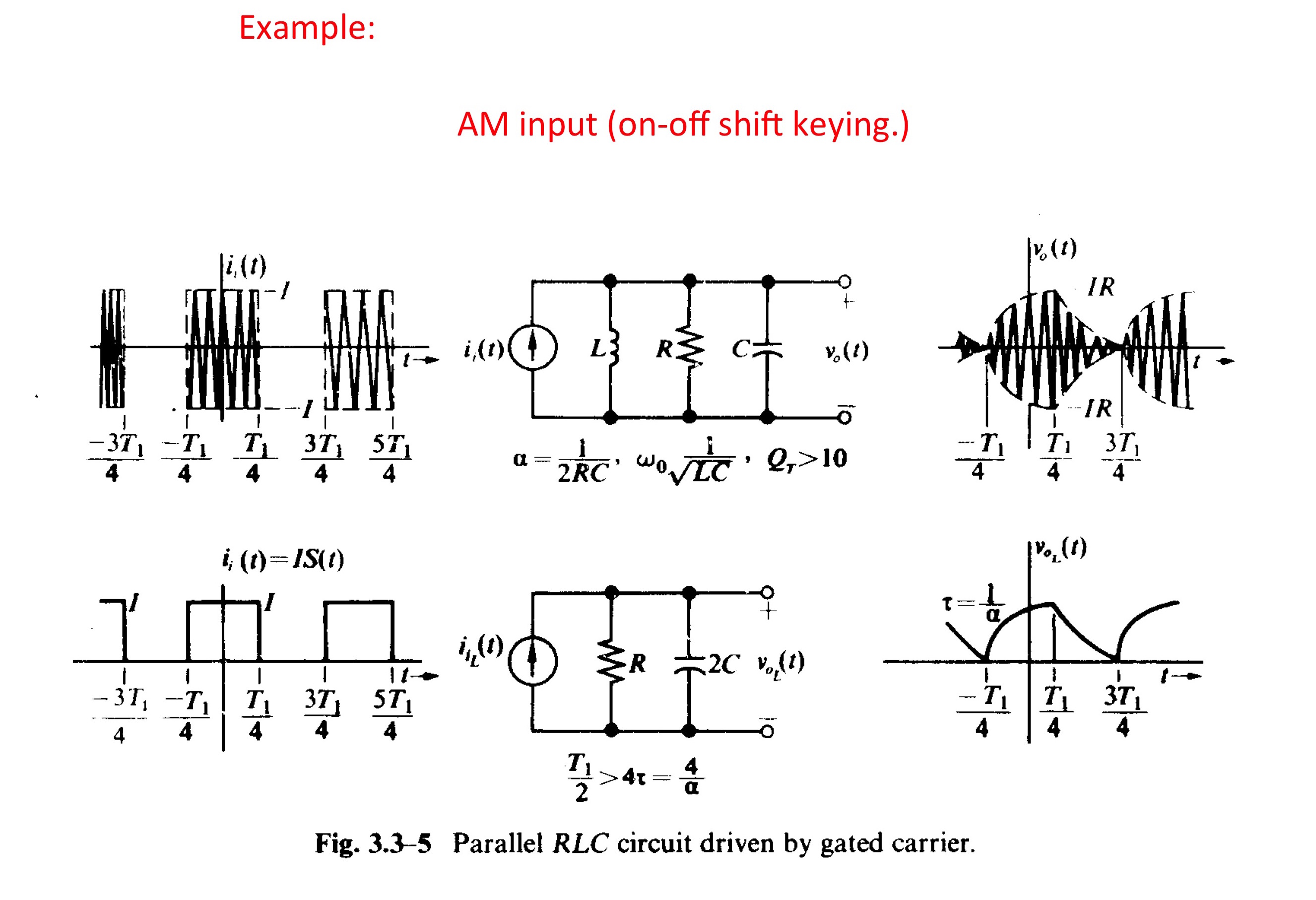

Figure 39. Transient response of parallel RLC circuit to on-off shift keying signal

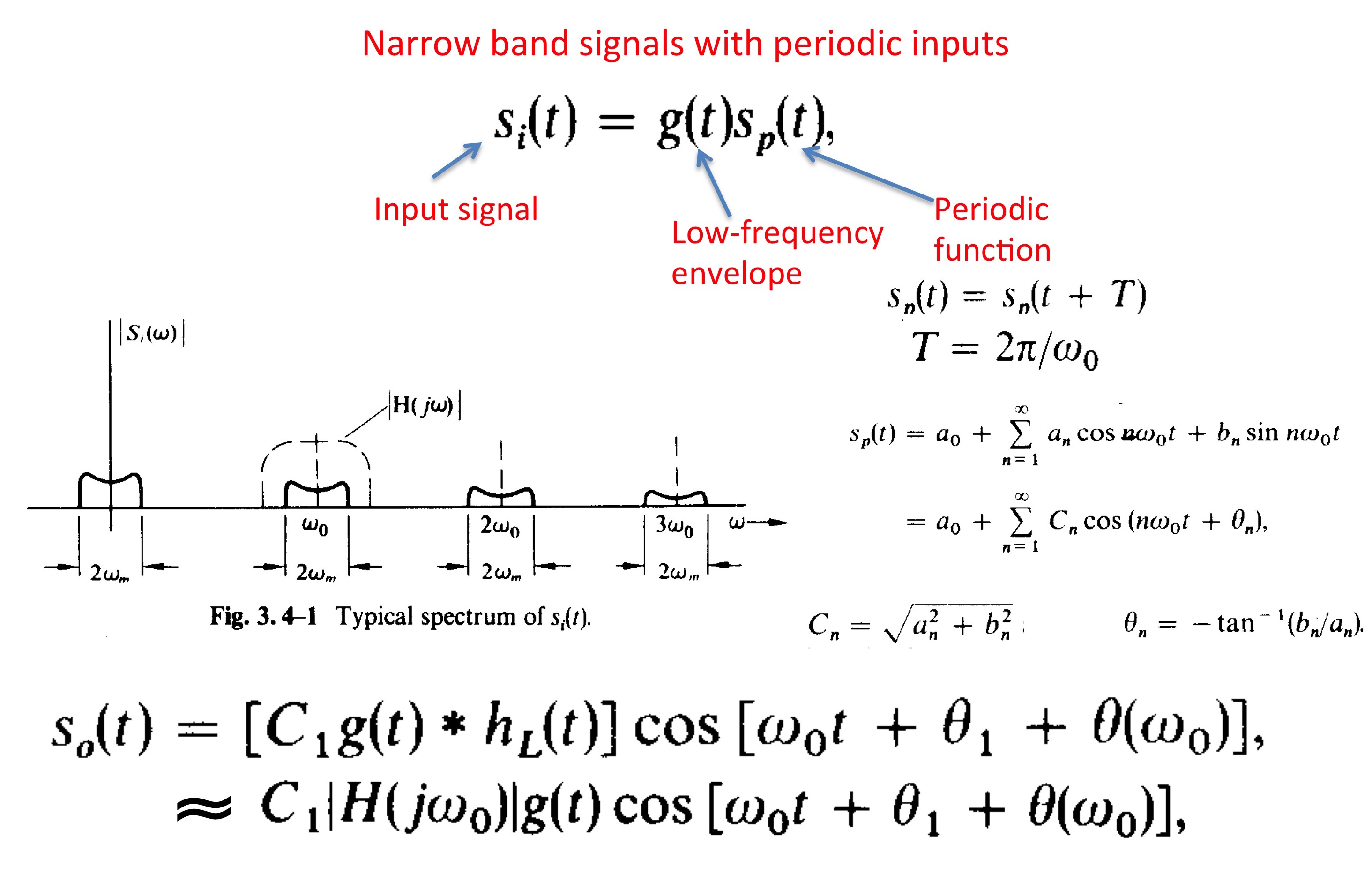

Figure 40. Narrow band filter response to periodic signal

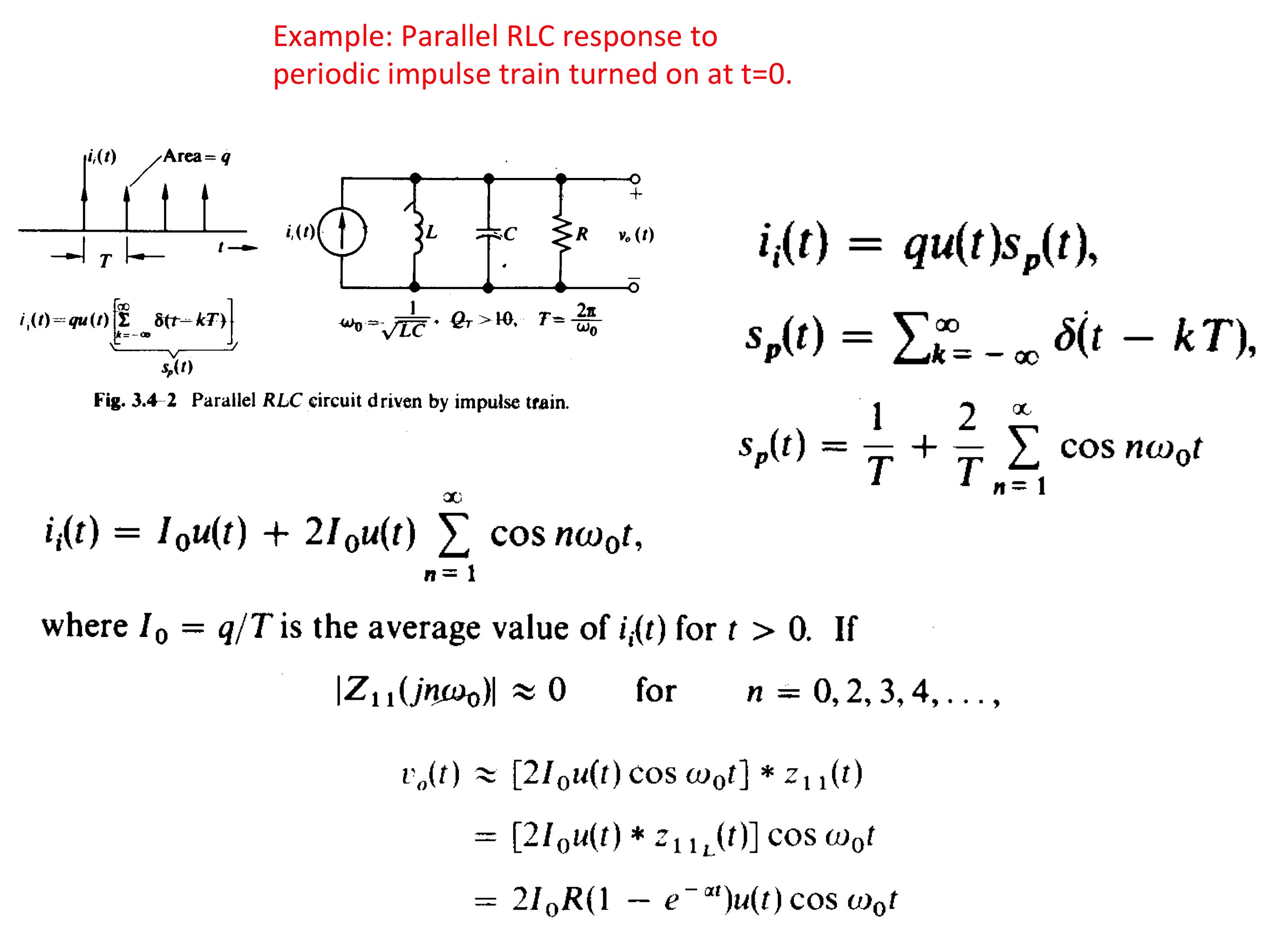

Figure 41. Parallel RLC network response to impulse train
