Prepared by Dr. Aaron Scher
[email protected]
Oregon Institute of Technology
Back to My collection of GNU radio companion flow graphs
Back to Aaron's home page.
Download file: BPSK_ModulatorA.grc.

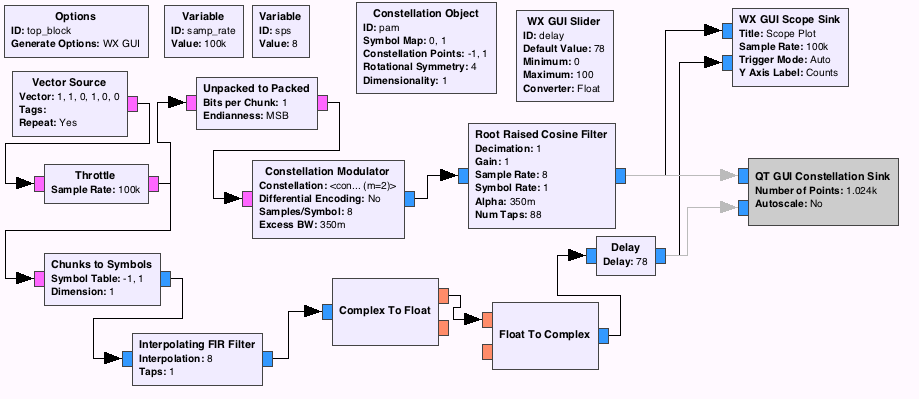

Flow Graph:

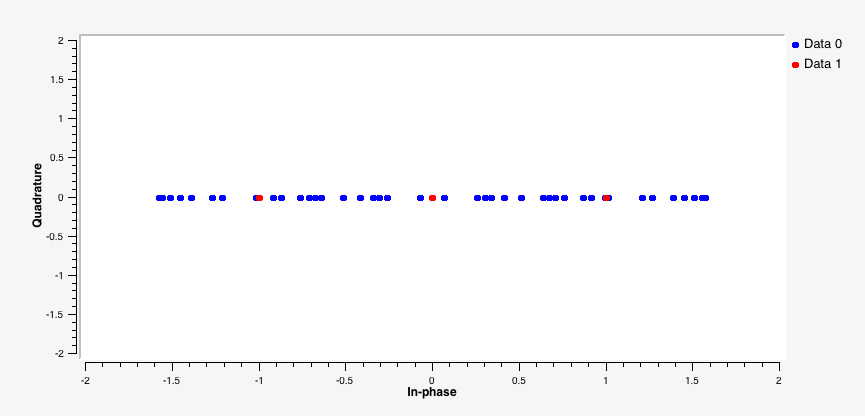

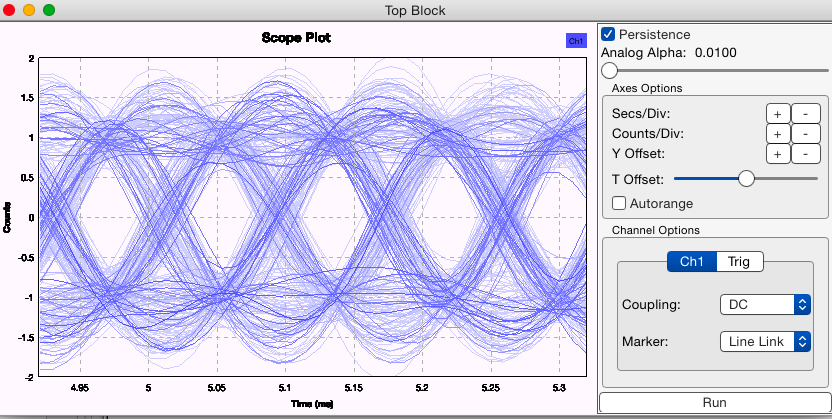

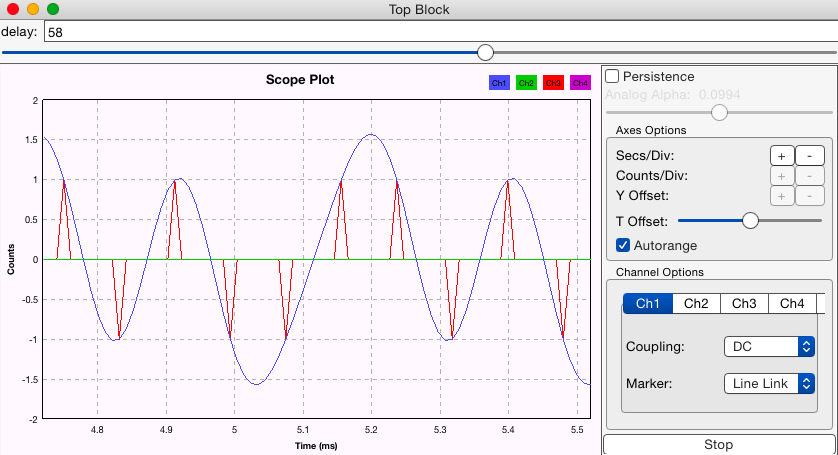

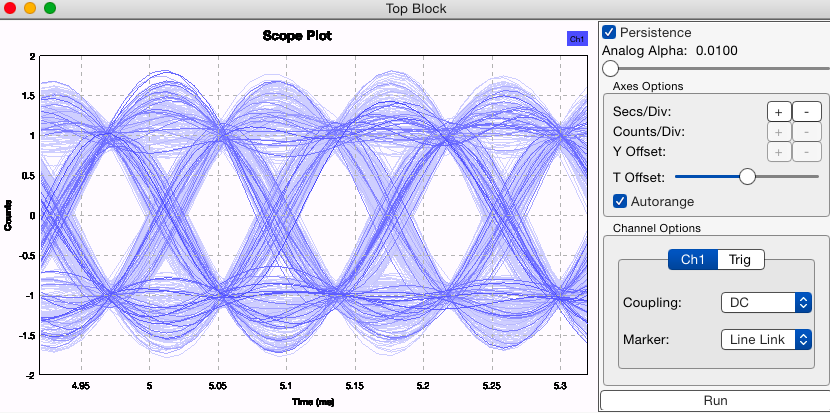

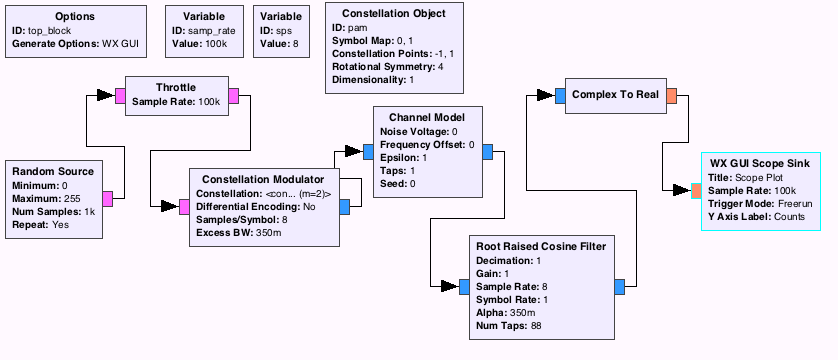

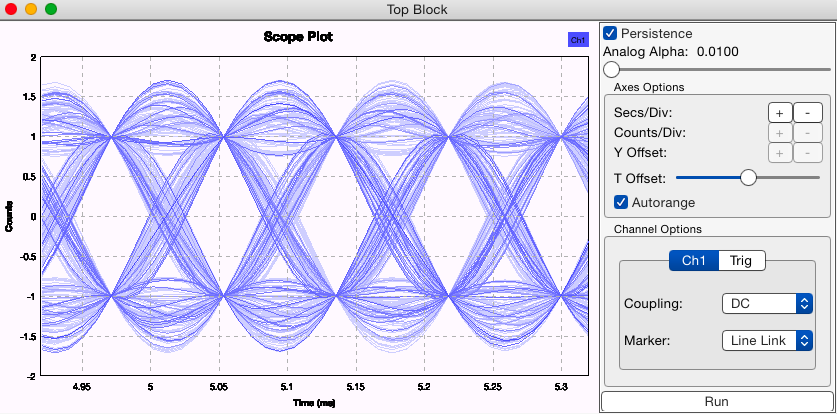

You can also create an eye diagram by replacing the repeating vector source with a random binary pattern generator and using a WX Gui Scope Sink. To see the eye pattern set the trigger mode of the WX Gui Scope Sink to "free run" and run the simulation. In the scope plot, turn on Persistance and set analog alpha as close to zero as possible. Below is the flow graph. Note that I included the Channel model block. This way I can see how the eye "closes" with with noise.
