Circuit a day: V-I curves of common components

Prepared by Dr. Aaron Scher
[email protected]
Oregon Institute of Technology

Back to Aaron's home page.
Back to Circuit a day.

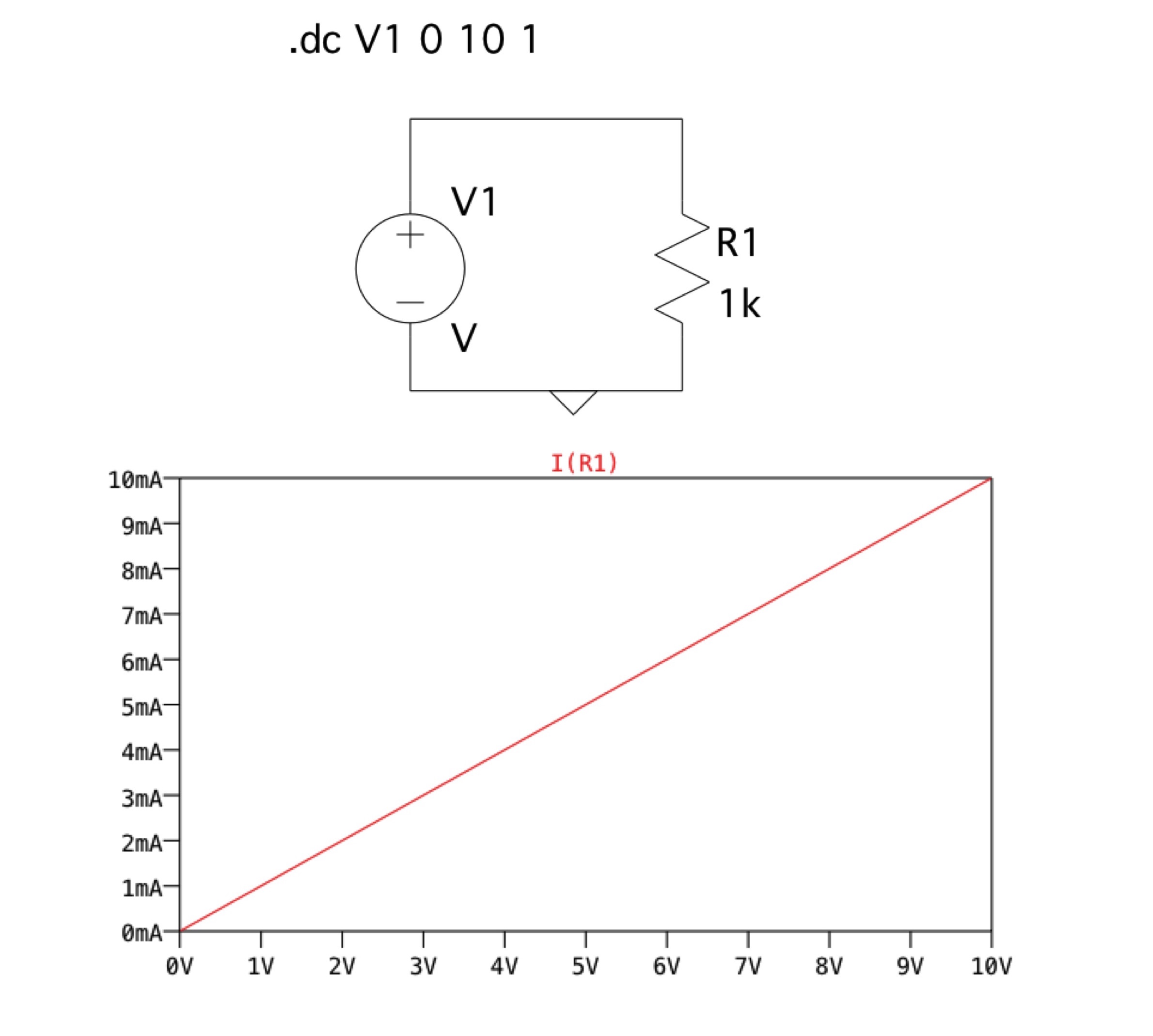

Resistor

Circuit 1

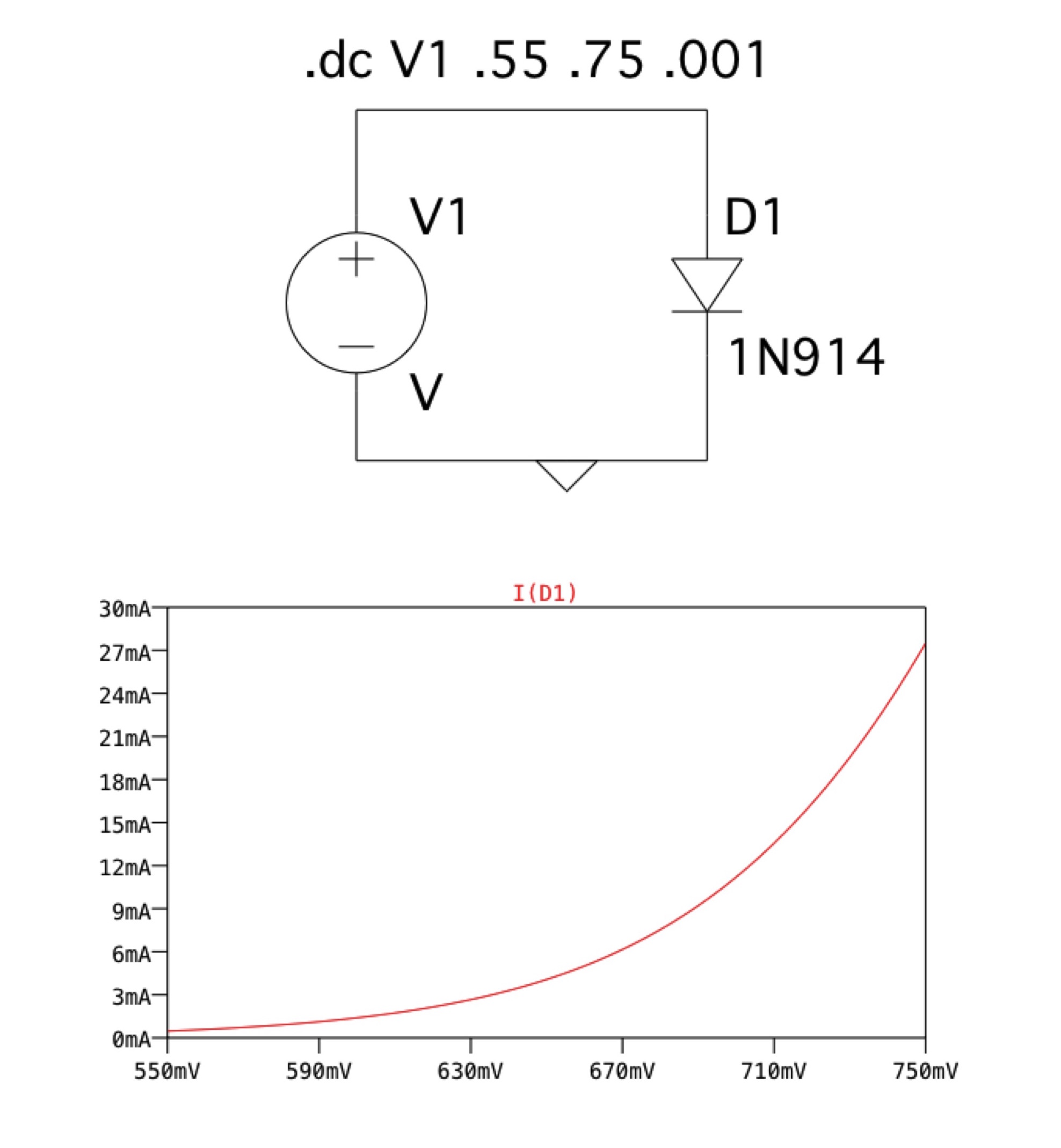

Diode

Circuit 1

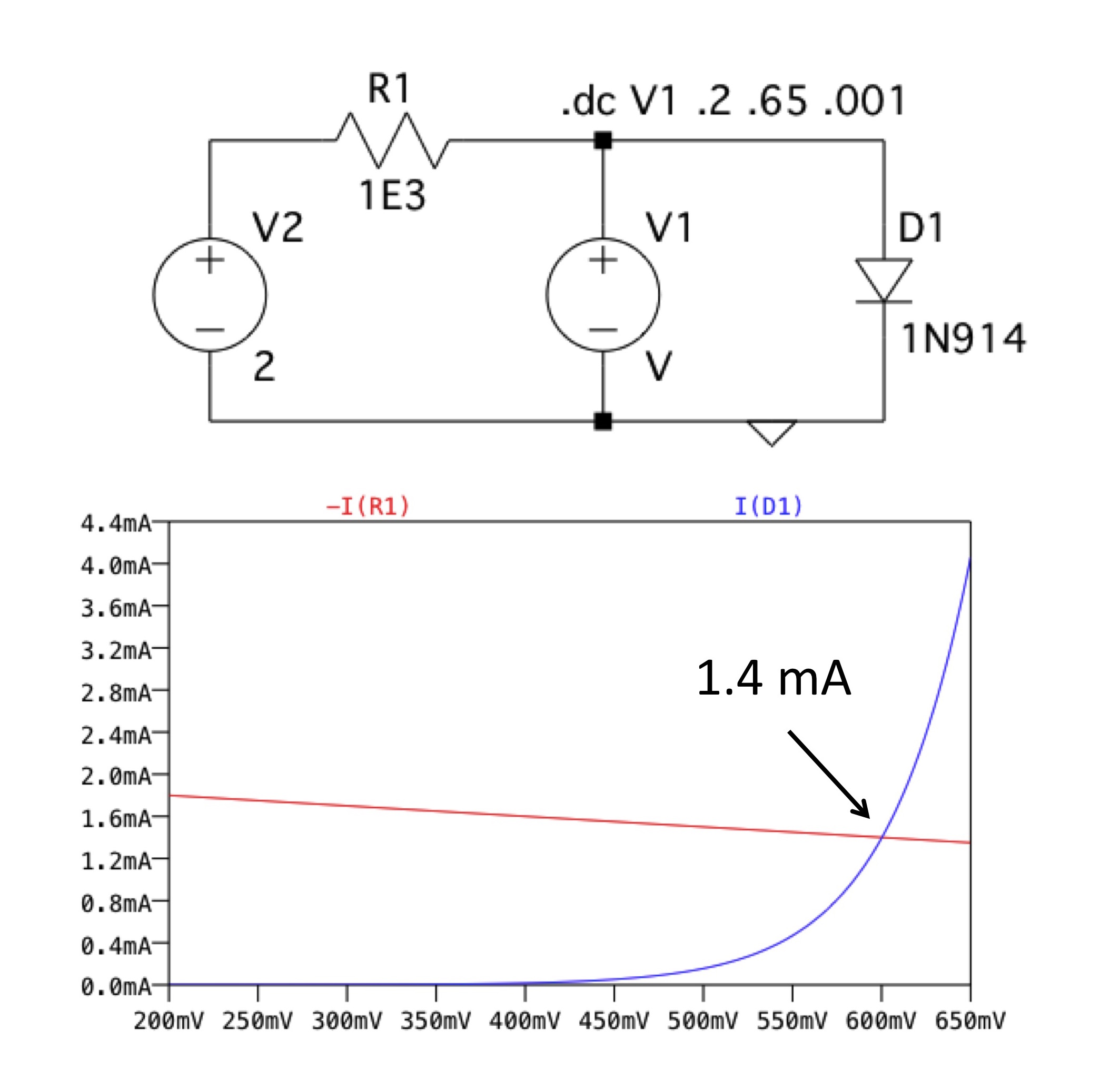

Diode with resistor: load line analysis

The point of intersection gives the actual current and voltage.

Circuit 1

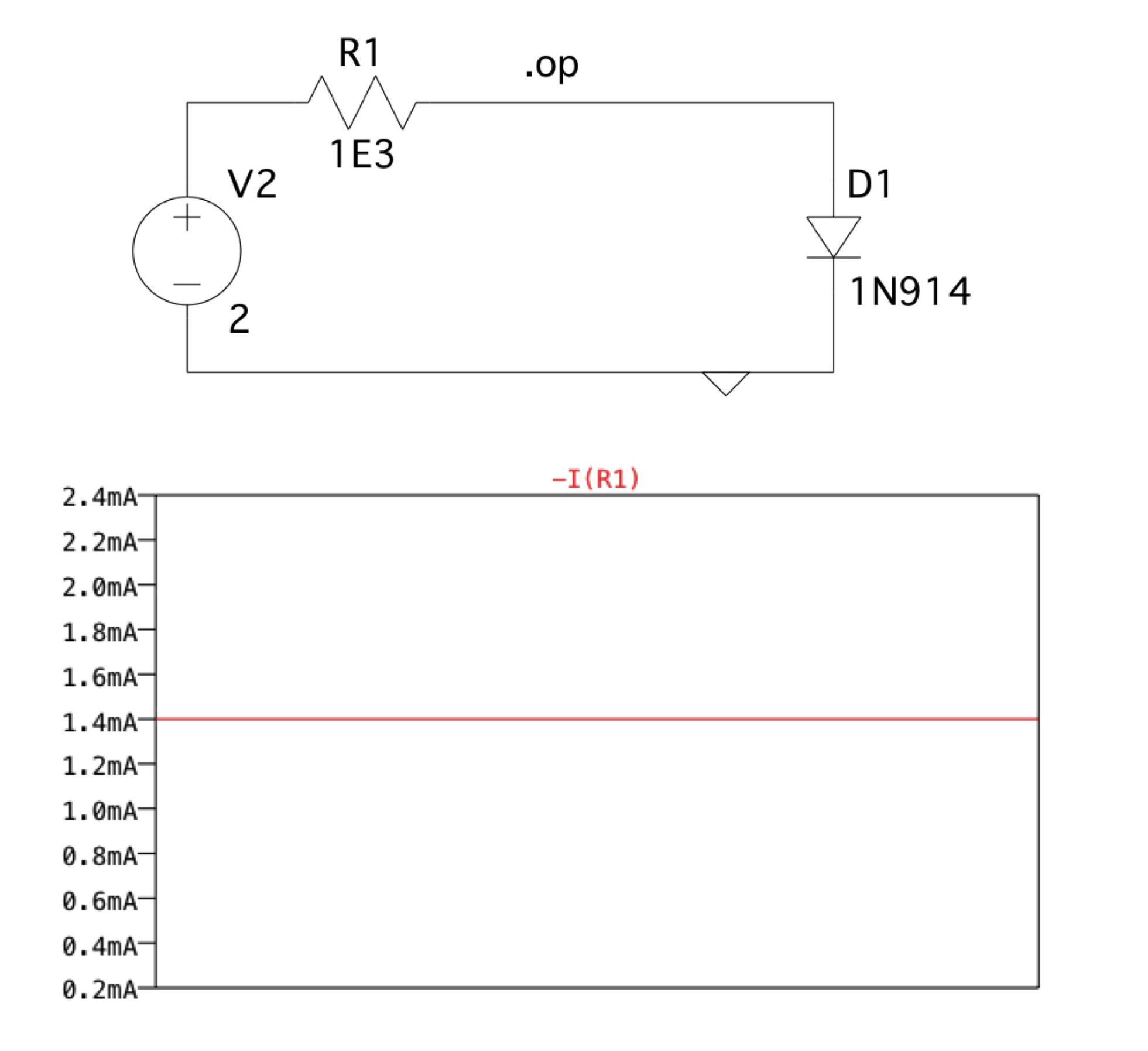

Verification of load line analysis aboe

Circuit 1

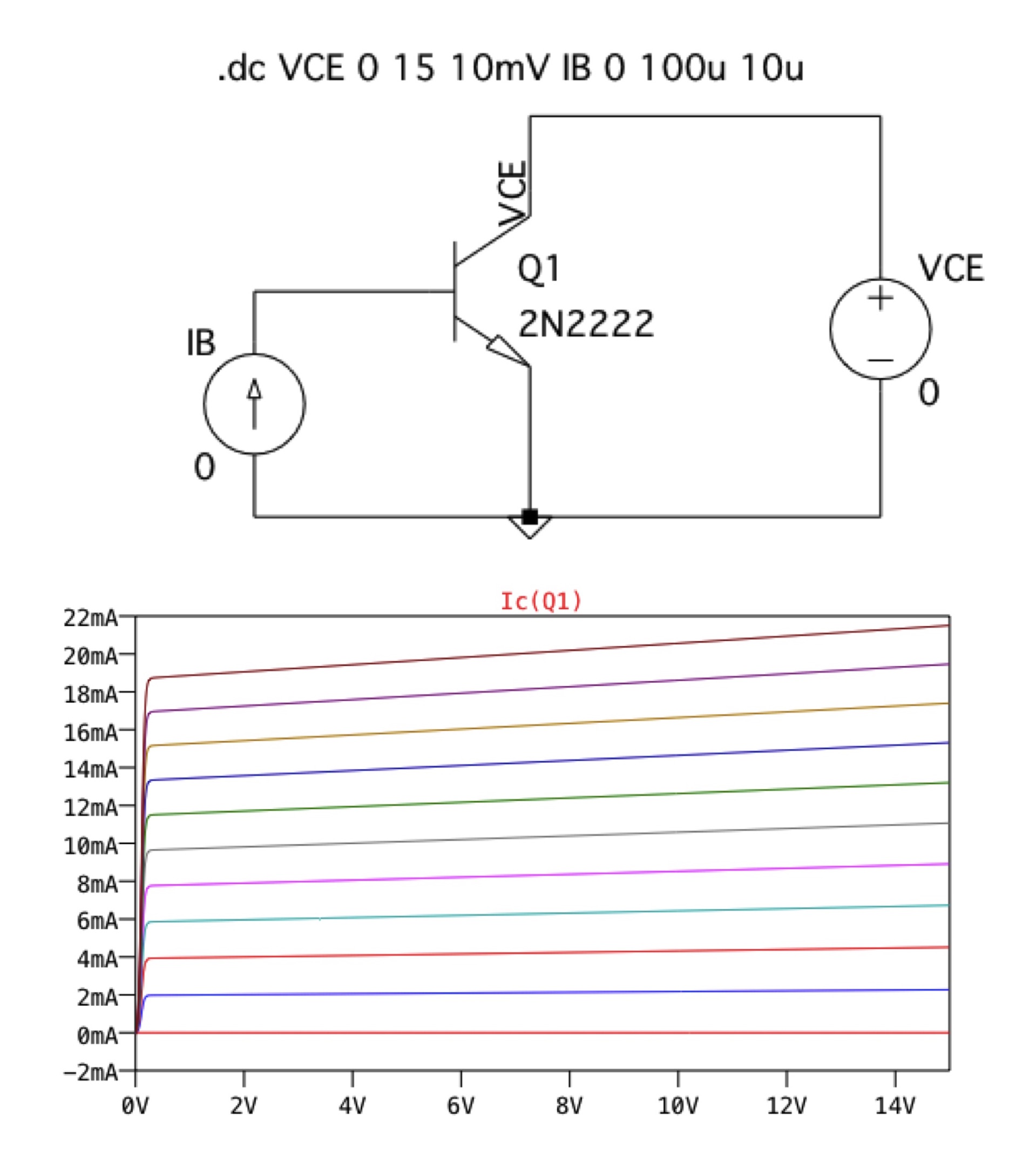

BJT

Circuit 1

References

Gunthard Kraus is my new hero! Check out his AMAZING Spice tutorials at the link below. (Click on "Content English" on the left side). Gunthard Kraus's home page.
